Xtreme's industry-leading 10 year – 5 year – 2 year warranty

XR5519

  • 5,500 lbs Capacity
  • 19 ft Lift Height
  • 11 ft Forward Reach
  • 74 hp Tier IV Final Engine

Description

  • 360° operator visibility
  • Easy access to components for servicing
  • Protected tilt & extend cylinders
  • Steel hydraulic & fuel tanks
  • Solid steel plate chassis
  • Melonite pins
  • Tier 4 final compliant engine
  • Cab mounted grab handles
  • Ductile steel manifold
  • Large cross section boom w/wear pads
  • Dash w/ display screen
  • Suspended pedals
  • Heavy duty pre-cleaner
  • Linde hydrostatic 2 speed transmission

Additional information

Class Carriage

A

Capacity Weight

5,500 lbs

Lift Height

19 ft

Forward Reach

11 ft

Frame Leveling L/R

N/A

Machine Weight

10,200 lbs

Engine

Deutz 2.9L 74 hp (Tier 4F)

Axles

Comer 128

Transmission

Linde

Fuel Capacity

19 gal

Tires

12 x 16.5

Hydraulic Flow (per min)

26 gal

Hydraulic Pressure

3,500 psi

Hydraulic Oil Capacity

24 gal

Length to fork face

12 ft 1 in

Width

71 in

Height

6 ft 7 in

Wheel Base

93 in

Ground Clearance

10.8 in

Turning Radius

11 ft

Options

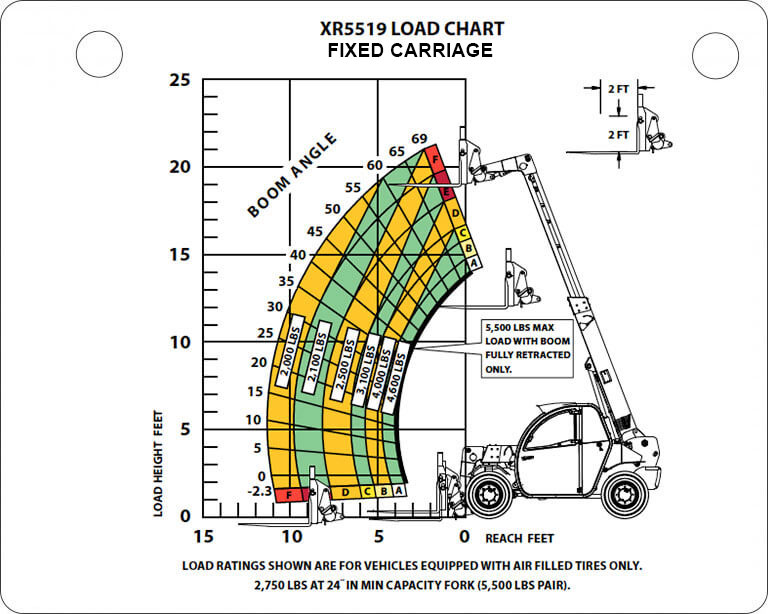

Load Chart

Xtreme XR5519 Load Chart

Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to the appropriate Xtreme Manufacturing operation manual for detailed instructions on proper use, specifications and maintenance of equipment.
