Xtreme's industry-leading 10 year – 5 year – 2 year warranty

XR630

  • 6,000 lbs Capacity
  • 30 ft 7 in Lift Height
  • 18 ft 5 in Forward Reach
  • 74 hp Tier IV Final Engine

Description

  • 360° operator visibility
  • Large cross section boom w/wear pads
  • Easy service access
  • 6° chassis frame sway
  • Steel hydraulic & fuel tanks
  • Plastic dash with display screen
  • Front and rear limited slip axles
  • Plastic fenders
  • Easy cab mounted grab handles
  • Tier 4 final compliant engine
  • Solid steel plate chassis
  • Melonite pins
  • Machine lift points
  • Linde hydrostatic 2 speed transmission

Additional information

Class Carriage

A

Capacity Weight

6,000 lbs

Lift Height

30 ft 7 in

Forward Reach

18 ft 5 in

Frame Leveling L/R

6 degrees

Machine Weight

13,700 lbs

Engine

Deutz 2.9L 74 hp (Tier 4F)

Axles

Comer 128

Transmission

Linde

Fuel Capacity

26 gal

Tires

12.5/80-18 Pneumatic

Hydraulic Flow (per min)

26 gal

Hydraulic Pressure

3,500 psi

Hydraulic Oil Capacity

50 gal

Length to fork face

18 ft 6 in

Width

78 in

Height

83.5 in

Wheel Base

116 in

Ground Clearance

14 in

Turning Radius

10 ft

Options

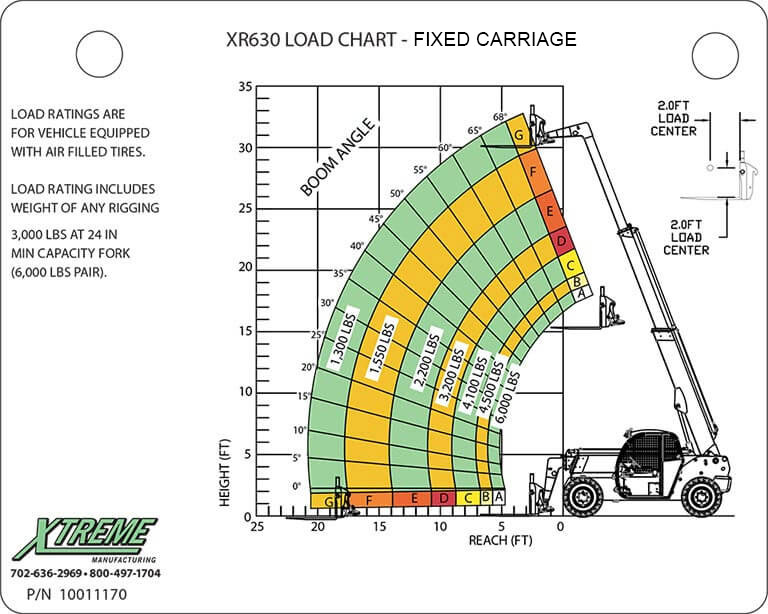

Load Chart

Xtreme XR630 Load Chart

Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to the appropriate Xtreme Manufacturing operation manual for detailed instructions on proper use, specifications and maintenance of equipment.
