XR734-A

  • 7,000 lbs Capacity
  • 34 ft Max Lift Height
  • 21 ft 6 in Forward Reach
  • 74 hp (Tier 4F) Engine

Description

  • 360° operator visibility
  • Ductile steel manifold
  • Suspension seat
  • Easy cab mounted grab handles
  • Easy service access
  • Master disconnect switch
  • Protected tilt & extend cylinders
  • Boom lift point
  • Steel hydraulic & fuel tanks
  • Manual lowering valve (cylinders)
  • Long life Lexan labels
  • Large cross section boom
  • Heavy duty boom chains
  • Easy tie downs
  • Suspended pedals
  • Heavy duty pre-cleaner
  • Large capacity fuel tank
  • Additional high pressure hydraulic filter
  • Trunnion mounted sway cylinders
  • Individual gauges/switches
  • Melonite pins
  • Steel hood
  • Standard auxiliary hydraulics
  • Solid steel plate chassis
  • Steel dash
  • Rear axle stabilization (RAS)
  • Center mounted powertrain
  • Back up alarm with light
  • Long life boom rollers
  • Dual batteries
  • Cab step
  • Limited slip front axle
  • Electrical aux hydraulic control

Additional information

Class Carriage

A

Capacity Weight

7,000 lbs

Lift Height

34 ft

Forward Reach

21 ft 6 in

Frame Leveling L/R

6 degrees

Machine Weight

16,000 lbs

Engine

Deutz 2.9L 74 hp (Tier 4F)

Axles

Comer 128

Transmission

Dana Powershift

Fuel Capacity

26 gal

Tires

foam filled 15.5-625

Hydraulic Flow (per min)

26 gal

Hydraulic Pressure

3,500 psi

Hydraulic Oil Capacity

50 gal

Length to fork face

19 ft

Width

89 in

Height

8 ft

Wheel Base

116 in

Ground Clearance

15 in

Turning Radius

11 ft

Options








Load Chart

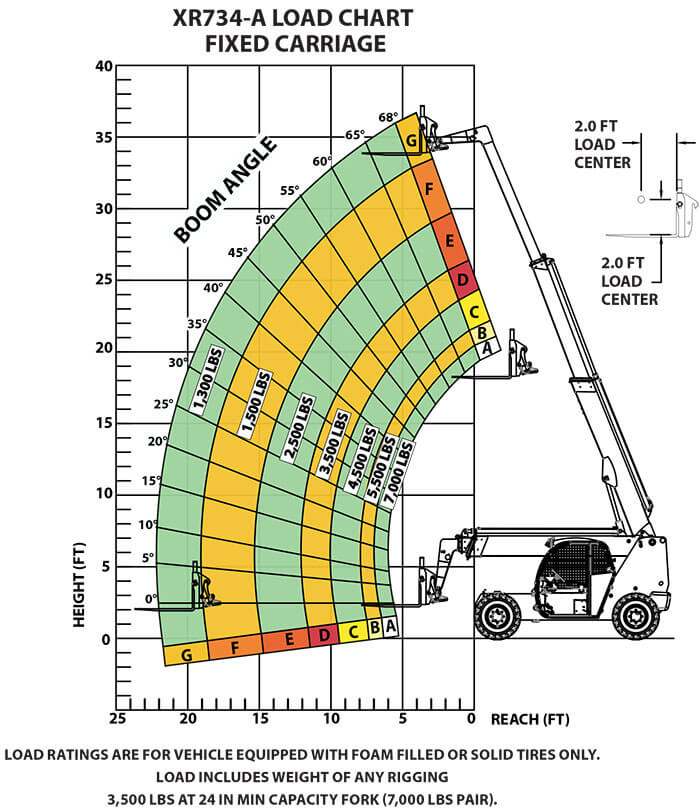

XR734 Load Chart - Fixed Carriage

Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to the appropriate Xtreme Manufacturing operation manual for detailed instructions on proper use, specifications and maintenance of equipment.
