Xtreme's industry-leading 10 year – 5 year – 2 year warranty

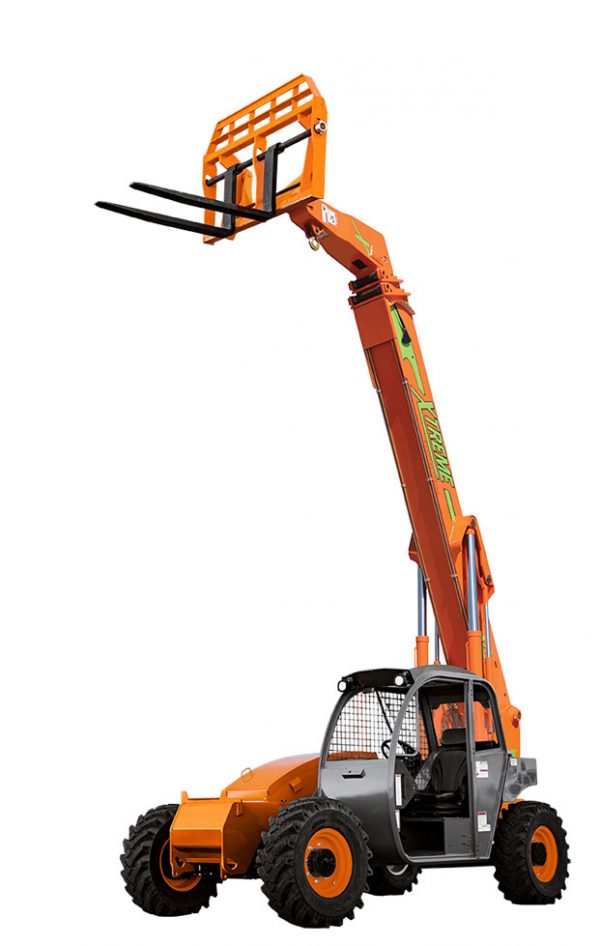

XR630-A

  • 6,000 lbs Capacity
  • 30 ft 7 in Max Lift Height
  • 18 ft 5 in Forward Reach
  • 74 hp (Tier 4F)

Description

  • 360° operator visibility
  • Cab mounted grab handles
  • Easy service access
  • Master disconnect switch
  • Protected tilt & extend cylinders
  • Ductile steel manifold
  • Steel hydraulic & fuel tanks
  • Manual lowering valve (cylinders)
  • Long life lexan labels
  • Large cross section boom w/ wear pads
  • Suspended pedals
  • Easy tie downs
  • Large capacity fuel tank
  • Heavy duty pre-cleaner
  • Melonite pins
  • Multi-function display screen
  • Standard auxiliary hydraulics
  • Solid steel plate chassis
  • Steel dash
  • Back up alarm with light
  • Linde hydrostatic 2 speed transmission

Additional information

Capacity Weight

6,000 lbs

Lift Height

30 ft 7 in

Forward Reach

18 ft 5 in

Frame Leveling L/R

6 degrees

Weight

13,700 lbs

Engine

74hp (Tier 4F)

Axles

Comer 128

Transmission

Linde

Fuel Capacity

26 gal

Tires

12.5/80-18 Pneumatic

Hydraulic Flow (per min)

26 gal

Hydraulic Pressure

3,500 psi

Hydraulic Oil Capacity

50 gal

Length to fork face

18 ft 6 inc

Width

78 in

Height

83.5 in

Wheel Base

116 in

Ground Clearance

14 in

Turning Radius

10 ft

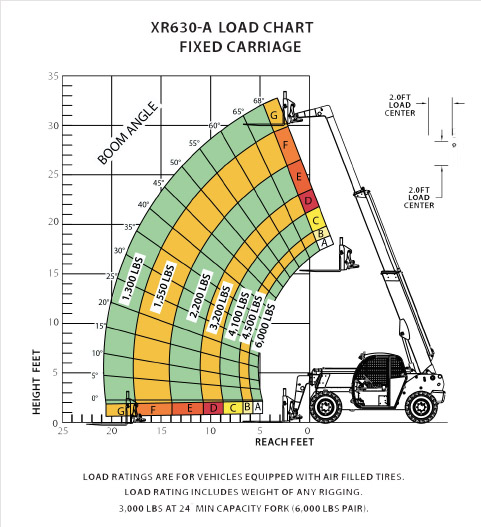

Load Chart

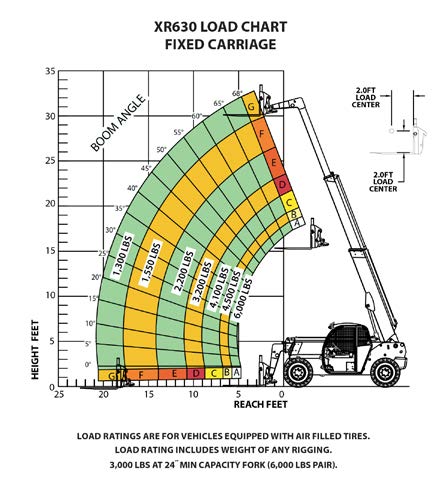

XR630 Loading Chart

Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to the appropriate Xtreme Manufacturing operation manual for detailed instructions on proper use, specifications and maintenance of equipment. XR630-A is a wear pad machine.
