Xtreme's industry-leading 10 year – 5 year – 2 year warranty

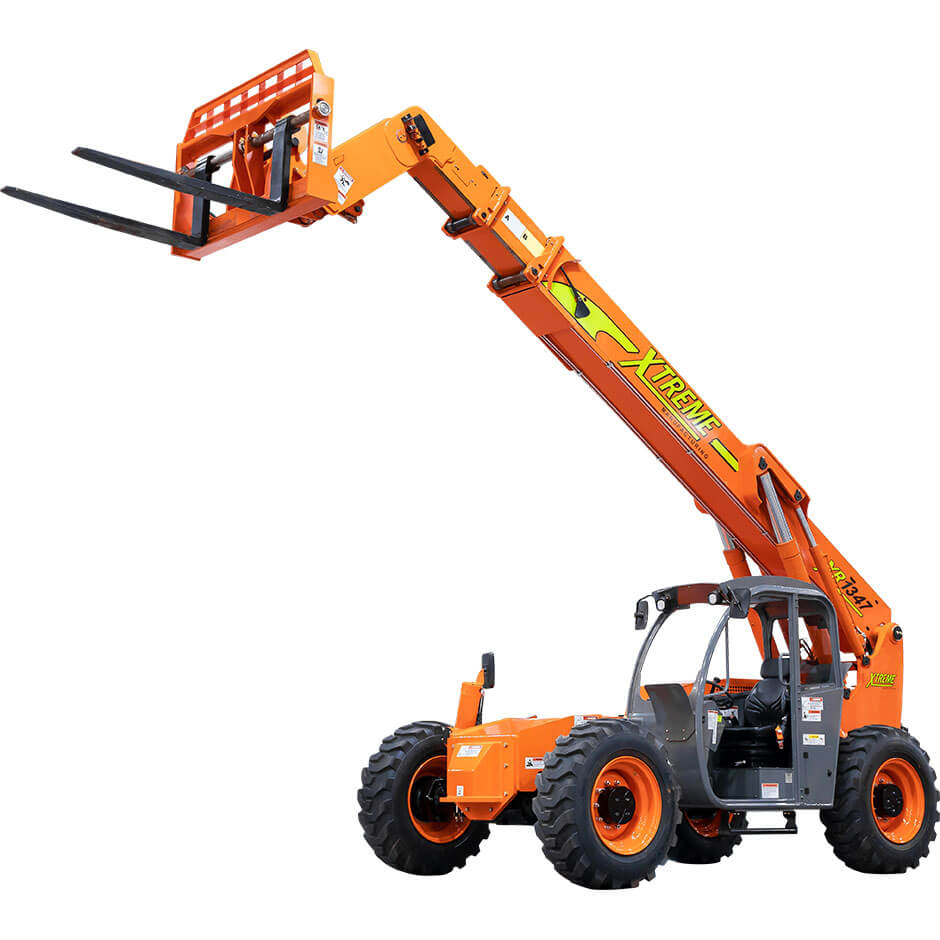

XR1347-C

  • 13,000 lbs Capacity
  • 47 ft Max Lift Height
  • 31 ft 6 in Forward Reach
  • 120 hp (Tier 4F)

Description

  • 360° operator visibility
  • Ductile steel manifold
  • Suspension seat
  • Easy cab mounted grab handles
  • Easy service access
  • Master disconnect switch
  • Protected tilt & extend cylinders
  • Boom lift point
  • Steel hydraulic & fuel tanks
  • Manual lowering valve (cylinders)
  • Long life Lexan labels
  • Large cross section boom
  • Heavy duty boom chains
  • Easy tie downs
  • Suspended pedals
  • ˝Y˝ frame handle
  • Large capacity fuel tank
  • Heavy duty pre-cleaner
  • Trunnion mounted sway cylinders
  • Additional high pressure hydraulic filter
  • Melonite pins
  • Individual gauges/switches
  • Standard auxiliary hydraulics
  • Steel hood
  • Steel dash
  • Solid steel plate chassis
  • Center mounted powertrain
  • Rear axle stabilization (RAS)
  • Long life boom rollers
  • Wider outrigger stance
  • Dual batteries
  • Back up alarm with light
  • Cab step
  • Electrical aux hydraulic control

Additional information

Class Carriage

C

Capacity Weight

13,000 lbs

Lift Height

47 ft

Forward Reach

31 ft 6 in

Frame Leveling L/R

11 degrees

Machine Weight

35,200 lbs

Engine

Cummins 3.8L 120 hp (Tier 4F)

Axles

Dana 213

Transmission

Dana T20000

Fuel Capacity

50 gal

Tires

Foam Filled 15.5 x 25

Hydraulic Flow (per min)

49 gal

Hydraulic Pressure

3,500 psi

Hydraulic Oil Capacity

62 gal

Length to fork face

21 ft 3 in

Width

101 in

Height

8 ft 1 in

Wheel Base

125 in

Ground Clearance

16.5 in

Turning Radius

12 ft

Options

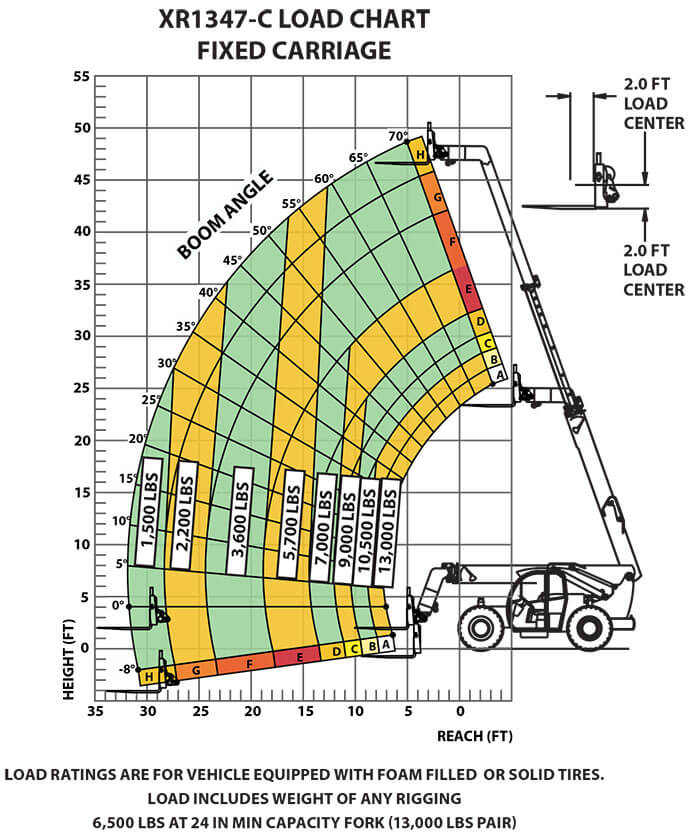

Load Chart

XR1347 Load Chart - Fixed Carriage

Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to the appropriate Xtreme Manufacturing operation manual for detailed instructions on proper use, specifications and maintenance of equipment.
