Xtreme's industry-leading 10 year – 5 year – 2 year warranty

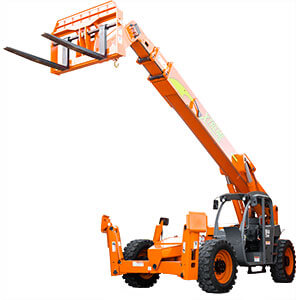

XR1555-C

  • 15,000 lbs Capacity
  • 55 ft Max Lift Height
  • 38 ft 5 in Forward Reach
  • 120 hp (Tier 4F)

Description

  • 360° operator visibility
  • Ductile steel manifold
  • Suspension seat
  • Easy cab mounted grab handles
  • Easy service access
  • Master disconnect switch
  • Protected tilt & extend cylinders
  • Boom lift point
  • Steel hydraulic & fuel tanks
  • Manual lowering valve (cylinders)
  • Long life Lexan labels
  • Large cross section boom
  • Heavy duty boom chains
  • Easy tie downs
  • Suspended pedals
  • ˝Y˝ frame handle
  • Large capacity fuel tank
  • Heavy duty pre-cleaner
  • Trunnion mounted sway cylinders
  • Additional high pressure hydraulic filter
  • Melonite pins
  • Steel hood
  • Standard auxiliary hydraulics
  • Solid steel plate chassis
  • Steel dash
  • Rear axle stabilization (RAS)
  • Center mounted powertrain
  • Wider outrigger stance
  • Long life boom rollers
  • Back up alarm with light
  • Dual batteries Cab step

Additional information

Class Carriage

C

Capacity Weight

15,000 lbs

Lift Height

55 ft

Forward Reach

38 ft 5 in

Frame Leveling L/R

11 degrees

Machine Weight

38,460 lbs

Engine

Cummins 3.8L 120 hp (Tier 4F)

Axles

Dana 213

Transmission

Dana T20000

Fuel Capacity

100 gal

Tires

Foam Filled 15.5 x 25

Hydraulic Flow (per min)

49 gal

Hydraulic Pressure

3,800 psi

Hydraulic Oil Capacity

62 gal

Length to fork face

25 ft 9 in

Width

101 in

Height

8 ft 3 in

Wheel Base

141 in

Ground Clearance

16.5 in

Turning Radius

14 ft

Outriggers

Yes

Options








Load Chart

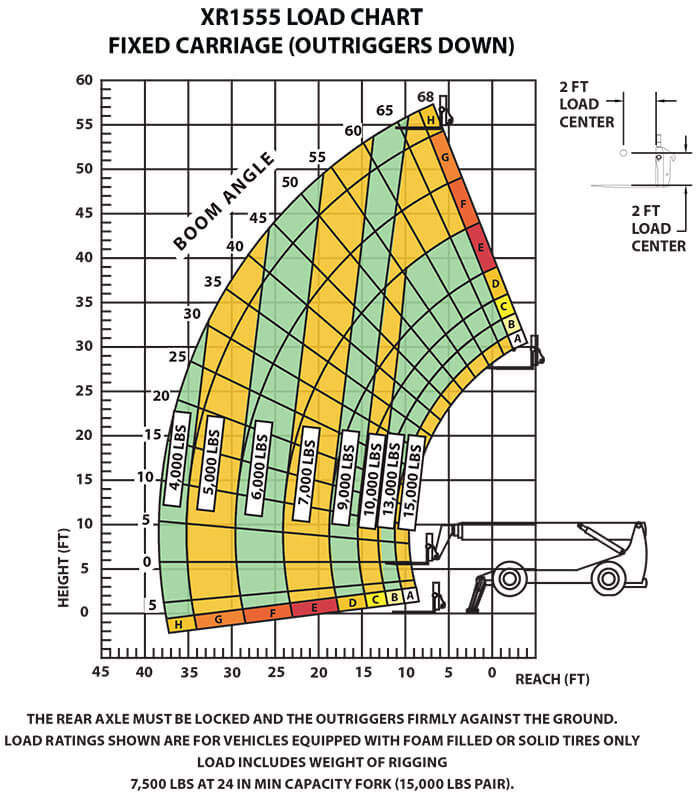

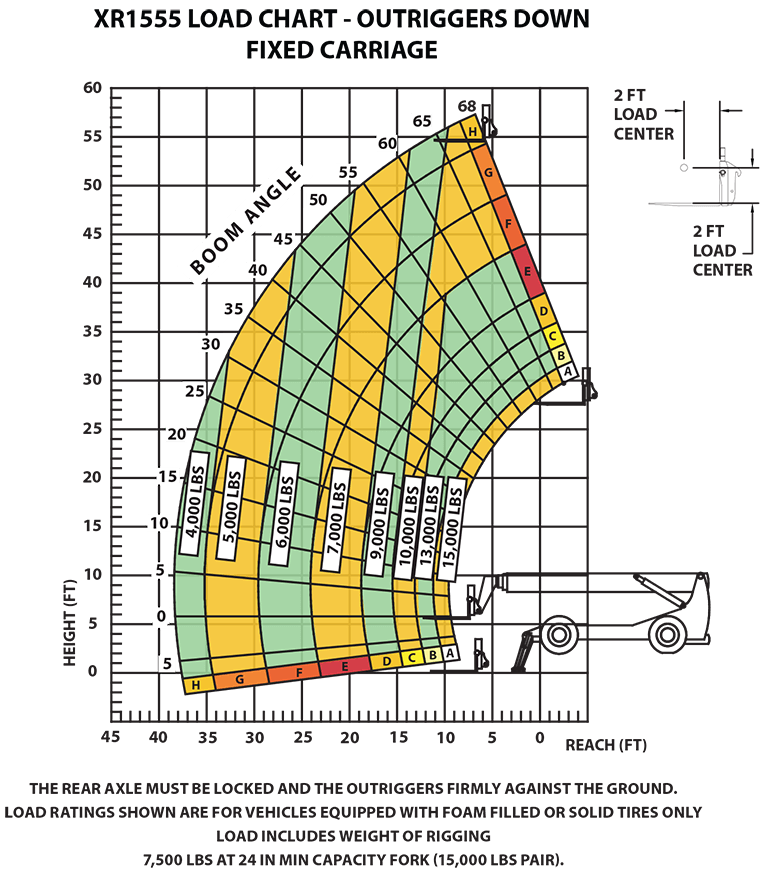

Load Chart XR1555-C Fixed Carriage (Outriggers Down)

Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to the appropriate Xtreme Manufacturing operation manual for detailed instructions on proper use, specifications and maintenance of equipment.
