Xtreme's industry-leading 10 year – 5 year – 2 year warranty

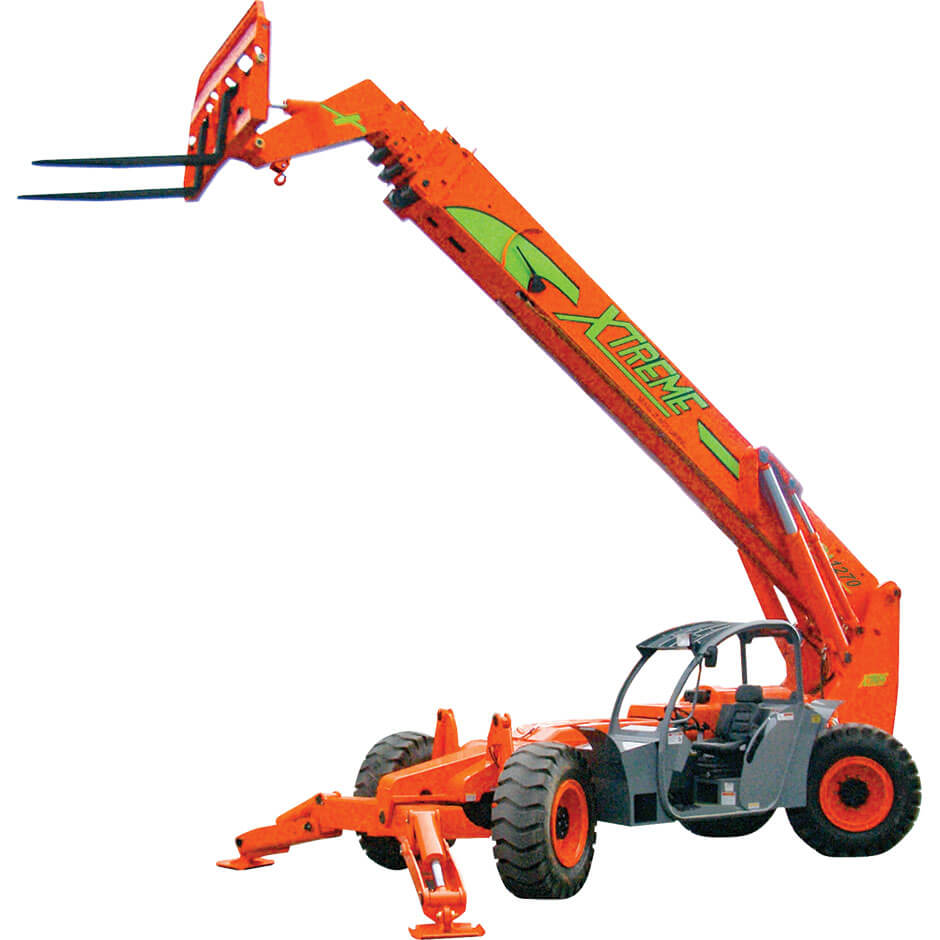

XR1570-C

  • 15,000 lbs Capacity
  • 70 ft Lift Height
  • 53 ft 10 in Forward Reach
  • 134 hp (Tier 4F) Engine

Description

The ideal balance of reach, height, capacity, and maneuverability.

  • 360° operator visibility
  • Ductile steel manifold
  • Suspension seat
  • Easy cab mounted grab handles
  • Easy service access
  • Master disconnect switch
  • Protected tilt & extend cylinders
  • Boom lift point
  • Steel hydraulic & fuel tanks
  • Manual lowering valve (cylinders)
  • Long life Lexan labels
  • Large cross section boom
  • Heavy duty boom chains
  • Easy tie downs
  • Suspended pedals ˝Y˝ frame handle
  • Large capacity fuel tank
  • Heavy duty pre-cleaner
  • Trunnion mounted sway cylinders
  • Additional high pressure hydraulic filter
  • Melonite pins
  • Steel hood
  • Standard auxiliary hydraulics
  • Solid steel plate chassis
  • Steel dash
  • Rear axle stabilization (RAS)
  • Center mounted powertrain
  • Wider outrigger stance
  • Long life boom rollers
  • Back up alarm with light
  • Dual batteries
  • Cab step
  • Electrical aux hydraulic control

Additional information

Class Carriage

C

Capacity Weight

15,000 lbs

Lift Height

70 ft

Forward Reach

53 ft 10 in

Frame Leveling L/R

8 degrees

Machine Weight

48,480 lbs

Engine

Deutz 3.6L 134 hp (Tier 4F)

Axles

Dana 213

Transmission

Dana T20000

Fuel Capacity

72 gal

Tires

Foam Filled 17.5 x 25

Hydraulic Flow (per min)

49 gal

Hydraulic Pressure

4,000 psi

Hydraulic Oil Capacity

58 gal

Length to fork face

26 ft 6 in

Width

102 in

Height

8 ft 11 in

Wheel Base

147 in

Ground Clearance

15 in

Turning Radius

15 ft 10 in

Outriggers

Yes

Options

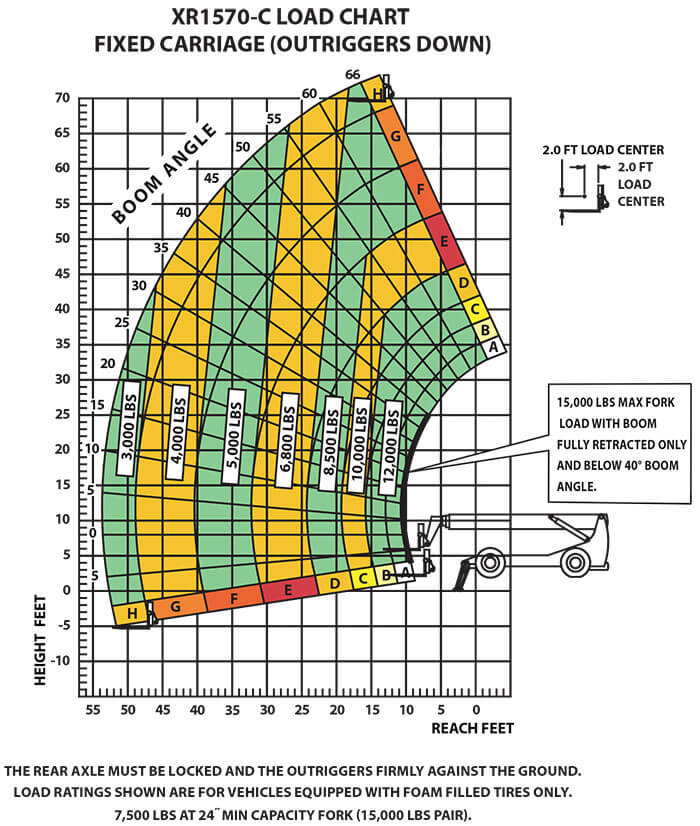

Load Chart

Load Chart XR1570-C

Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to the appropriate Xtreme Manufacturing operation manual for detailed instructions on proper use, specifications and maintenance of equipment.
