Xtreme's industry-leading 10 year – 5 year – 2 year warranty

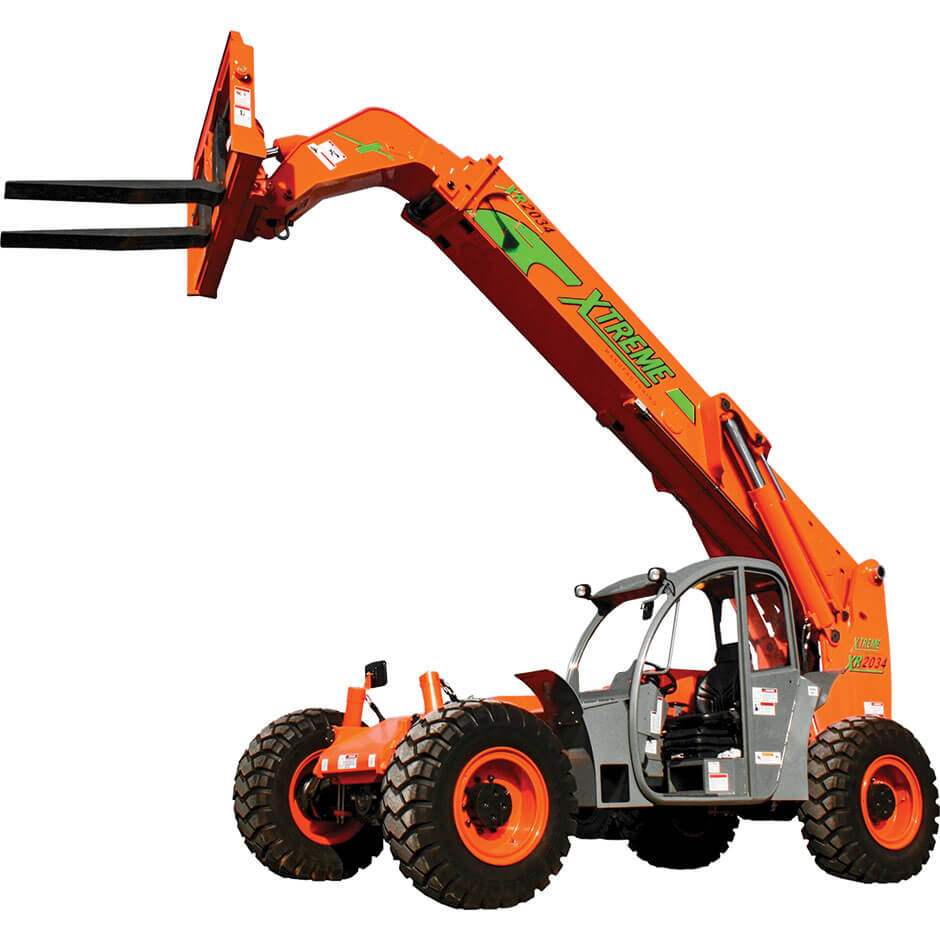

XR2034

  • 20,000 lbs Capacity
  • 34 ft Lift Height
  • 16 ft 7 in Forward Reach
  • 134 hp Tier IV Engine

Description

Increased capacity, while still maintaining excellent jobsite maneuverability.

  • 360° operator visibility
  • Suspension seat
  • Easy service access
  • Protected tilt & extend cylinders
  • Steel hydraulic & fuel tanks
  • Long life Lexan labels
  • Suspended pedals
  • Large capacity fuel tank
  • Trunnion mounted sway cylinders
  • Melonite pins
  • Standard auxiliary hydraulics
  • Steel dash
  • Center mounted powertrain
  • Long life boom rollers
  • Cab step
  • Dual batteries
  • Ductile steel manifold
  • Easy cab mounted grab handles
  • Master disconnect switch
  • Boom lift point
  • Manual lowering valve (cylinders)
  • Large cross section boom
  • Easy tie downs
  • “Y” frame handle
  • Heavy duty pre-cleaner
  • Additional high pressure hydraulic filter
  • Individual gauges & switches
  • Steel hood
  • Solid steel plate chassis
  • Rear axle stabilization (RAS)
  • Back up alarm with light

Additional information

Class Carriage

C

Capacity Weight

20,000 lbs

Lift Height

34 ft

Forward Reach

16 ft 7 in

Frame Leveling L/R

8 degrees

Machine Weight

40,150 lbs

Engine

Deutz 3.6L 134 hp (Tier 4F)

Axles

Dana 213

Transmission

Dana T20000

Fuel Capacity

72 gal

Tires

17.5 x 25

Hydraulic Flow (per min)

49 gal

Hydraulic Pressure

4,000 psi

Hydraulic Oil Capacity

58 gal

Length to fork face

26 ft 1 in

Width

102 in

Height

8 ft 11 in

Wheel Base

124 in

Ground Clearance

15 in

Turning Radius

15 ft 10 in

Options







Load Chart

Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to the appropriate Xtreme Manufacturing operation manual for detailed instructions on proper use, specifications and maintenance of equipment.
