Xtreme's industry-leading 10 year – 5 year – 2 year warranty

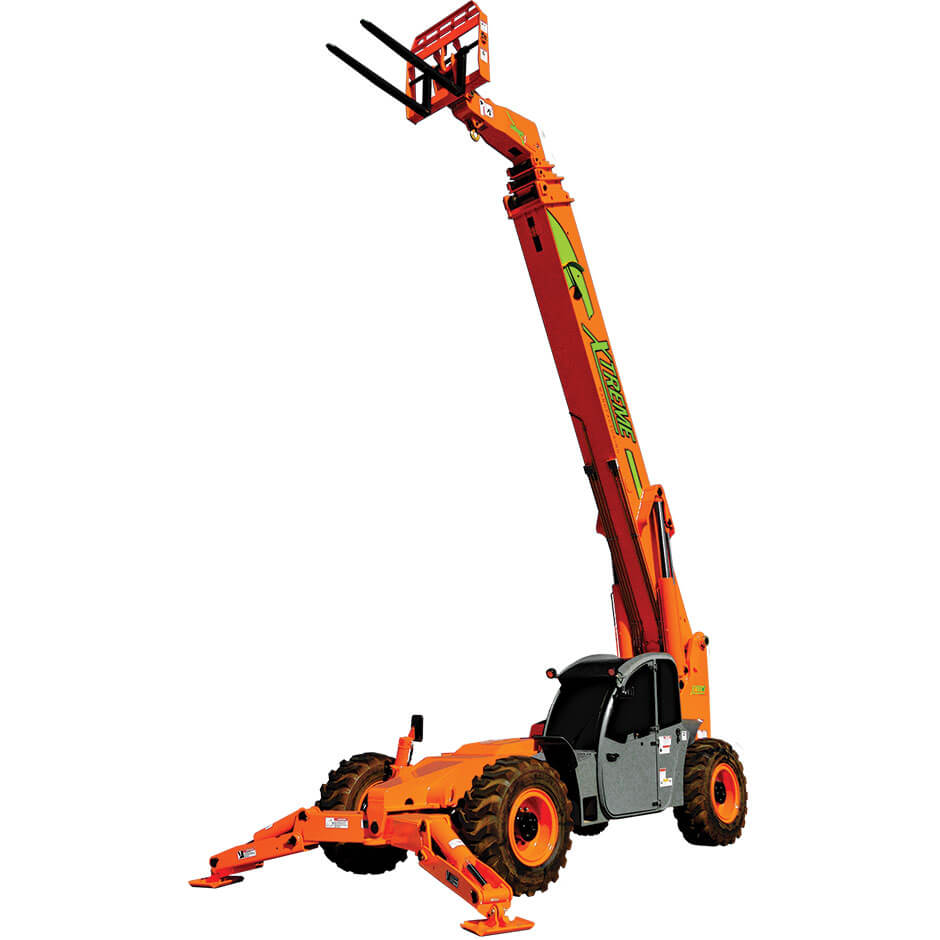

XR1055-B

  • 10,000 lbs Capacity
  • 55 ft Lift Height
  • 39 ft Forward Reach
  • 74 hp HT (Tier 4F) Engine

Description

The ideal balance of reach, height, capacity, and maneuverability.

  • 360° operator visibility
  • Ductile steel manifold
  • Suspension seat
  • Easy cab mounted grab handles
  • Easy service access
  • Master disconnect switch
  • Protected tilt & extend cylinders
  • Boom lift point
  • Steel hydraulic & fuel tanks
  • Manual lowering valve (cylinders)
  • Long life Lexan labels
  • Large cross section boom
  • Heavy duty boom chains
  • Easy tie downs
  • Suspended pedals
  • Heavy duty pre-cleaner
  • Large capacity fuel tank
  • Additional high pressure hydraulic filter
  • Trunnion mounted sway cylinders
  • Steel hood
  • Melonite pins
  • Solid steel plate chassis
  • Standard auxiliary hydraulics
  • Rear axle stabilization (RAS)
  • Steel dash
  • Wider outrigger stance
  • Center mounted powertrain
  • Back up alarm with light
  • Long life boom rollers
  • Limited slip front axle
  • Dual batteries
  • Cab step
  • Electrical aux hydraulic control
  • Engine block heater

Additional information

Class Carriage

B

Capacity Weight

10,000 lbs

Lift Height

55 ft

Forward Reach

39 ft

Frame Leveling L/R

11 degrees

Machine Weight

34,600 lbs

Engine

Cummins 3.8L 74 hp HT (Tier 4F)

Axles

ZF MST3055 / 3060

Transmission

ZF 3WG94

Fuel Capacity

50 gal

Tires

Foam Filled 15.5 x 25

Hydraulic Flow (per min)

49 gal

Hydraulic Pressure

3,500 psi

Hydraulic Oil Capacity

62 gal

Length to fork face

21 ft 4 in

Width

101 in

Height

8 ft 9 in

Wheel Base

125 in

Ground Clearance

16.5 in

Turning Radius

12 ft

Outriggers

Yes

Options

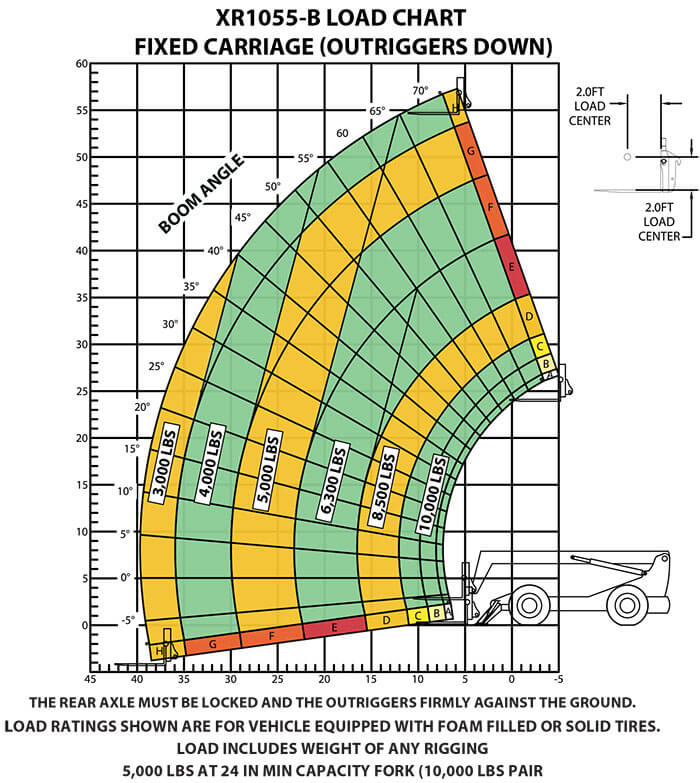

Load Chart

Load Chart XR1055-B

Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to the appropriate Xtreme Manufacturing operation manual for detailed instructions on proper use, specifications and maintenance of equipment.
