XR1247-B
Product already in the list.
Description
- 360° operator visibility
- Ductile steel manifold
- Suspension seat
- Easy cab mounted grab handles
- Easy service access
- Master disconnect switch
- Protected tilt & extend cylinders
- Boom lift point
- Steel hydraulic & fuel tanks
- Manual lowering valve (cylinders)
- Long life Lexan labels
- Large cross section boom
- Heavy duty boom chains
- Easy tie downs
- Suspended pedals ˝Y˝ frame handle
- Large capacity fuel tank
- Heavy duty pre-cleaner
- Trunnion mounted sway cylinders
- Additional high pressure hydraulic filter
- Melonite pins Individual gauges/switches
- Standard auxiliary hydraulics
- Steel hood
- Steel dash
- Solid steel plate chassis
- Center mounted powertrain
- Rear axle stabilization (RAS)
- Long life boom rollers
- Wider outrigger stance
- Dual batteries
- Back up alarm with light
- Cab step
- Electrical aux hydraulic control
Options
Cab Options
- Open cab
- Enclosed cab w/heat
- Enclosed cab w/heat & AC
Options
- Pintle hook
- Flashing amber strobe
- Boom work lights – LED
- Rear cab work light – LED
- Tail, turn, running & brake lights
- Fuel cap – locking
- Enclosed cab clear glass
- Machine lift points (qty 4)
- Steel fenders (qty 4)
- Boom maintenance stand
- Limited slip axle (front) Dana 213
- Special paint (excluding cab)
- Special paint (including cab)
- Flashing green strobe
- Back up camera
- Top curve cab glass
- Battery blanket
- Hydraulic tank heater
- Cab heater (aux)
- Cold weather synthetic oil
- Swivel hook
- Coordinated Motion
Carriages
- Carriage 48″ fixed
- Carriage 48″ fork positioning
- Carriage 48″ side tilt – 8,000 lbs
- Carriage 52″ swing – 8,000 lbs
- Carriage 60″ fixed
- Carriage 60″ fork positioning
- Carriage 72″ fixed
- Carriage 72″ fork positioning
- Carriage 72″ side tilt – 8,000 lbs
- Carriage 72″ side tilt – 12,000 lbs
- Carriage 72″ swing – 12,000 lbs
- Carriage 72” – Rake
- Carriage 96″ fixed
Fork Tines
- 4″ x 2.25″ x 48″ (qty 2)
- 4″ x 2.25″ x 60″ (qty 2)
- 5″ x 2.25″ x 48″ (qty 2)
- 5″ x 2.25″ x 60″ (qty 2)
- 6″ x 2″ x 72″ (qty 2)
- 6″ x 2″ x 96″ (qty 2)
- 7″ x 1.75″ x 48″ (qty 2)
- 7″ x 1.75″ x 60″ (qty 2)
- 7″ x 2.25″ x 60″ (qty 2)
- 6″ x 2.25″ x 60″ (qty 2)
- 6″ x 2″ x 48″ full taper (qty 2)
- 2″ x 2″ x 48″ block (qty 2)
- 2″ x 3″ x 48″ block (qty 2)
Tires
- 14.00 x 24 solid RH (qty 2)
- 14.00 x 24 solid LH (qty 2)
- 15.5 x 25 E3 foam fill (qty 4)
- 15.5 x 25 G2 RH foam fill (qty 2)
- 15.5 x 25 G2 LH foam fill (qty 2)
Attachments
- Pole grapple 72″ with shoe (CR)
- Sling mount
- Truss boom 12′ (Star)
- Truss boom 15′ (Star)
- Bucket 1.0 cu yd (Star)
- Bucket 1.65 cu yd (Star)
- 4’x4′ Personnel platform (Star)
- 4’x6′ Personnel platform (Star)
- 4’x8′ Personnel platform (Star)
- 4’x9.67′ Personnel platform (Star)
- Tire Manipulator
- Rotobec
- Skid Steer Adapter
Telematics
- Direct data
- Xtreme OnSite™ dashboard + data
- Keypad

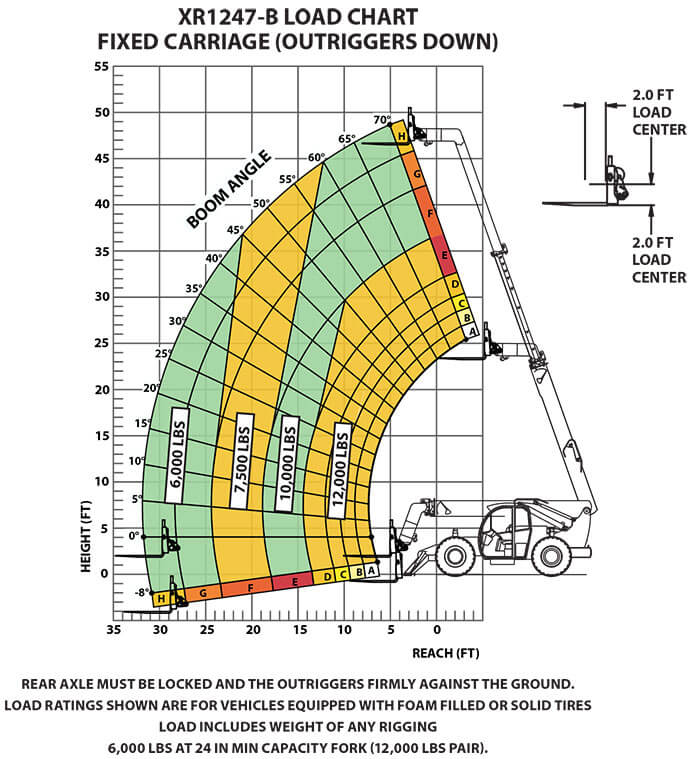

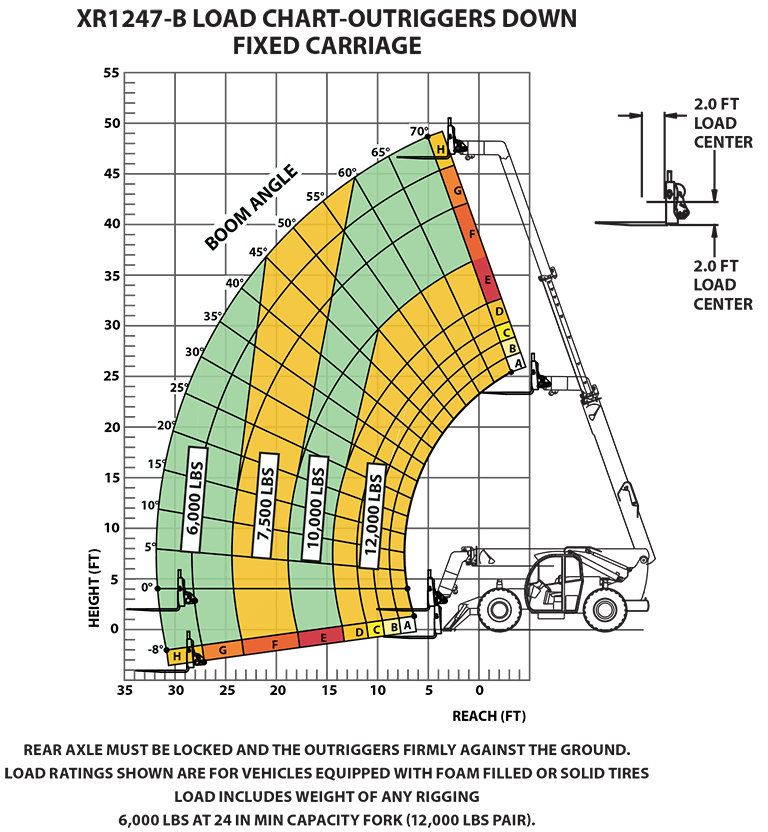

Load Chart
Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to the appropriate Xtreme Manufacturing operation manual for detailed instructions on proper use, specifications and maintenance of equipment.
