Xtreme's industry-leading 10 year – 5 year – 2 year warranty

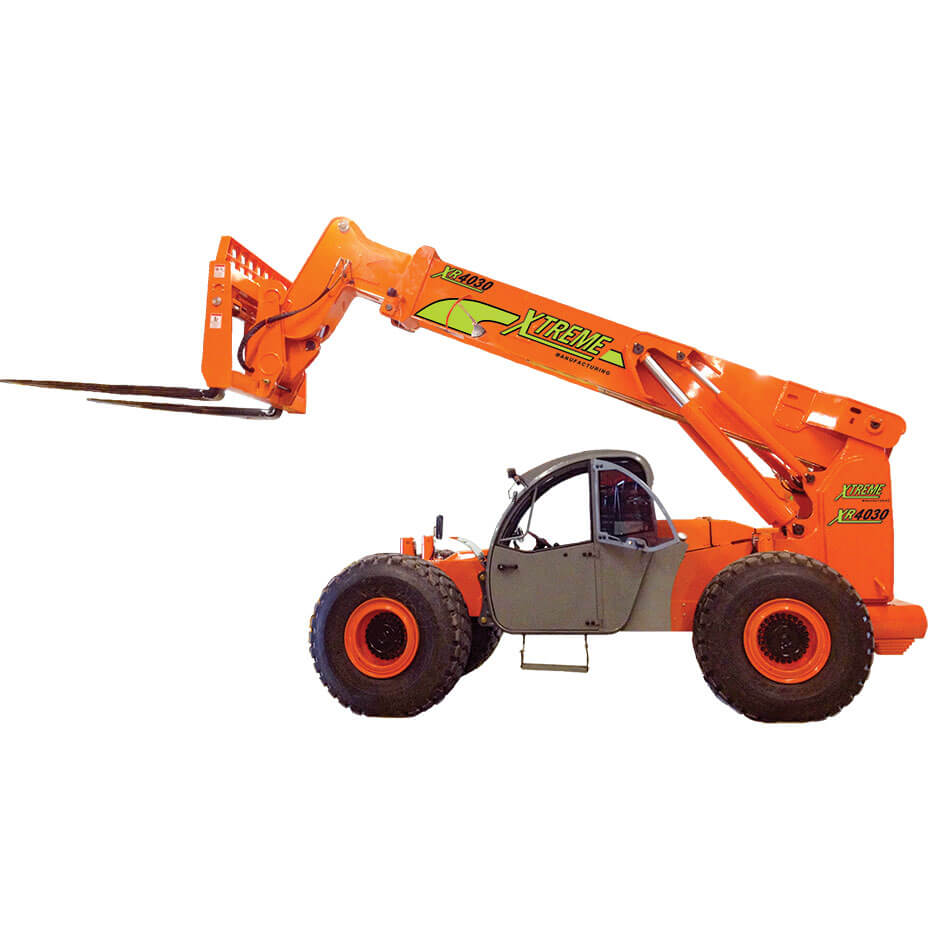

XR4030

  • 40,000 lbs Capacity
  • 30 ft Lift Height
  • 16 ft 4 in Forward Reach
  • 173 hp Tier IV Engine

Description

The XR4030 can lift an incredible 40,000lbs. Ideal for applications within the oil, gas and mining segments.

  • 360° operator visibility
  • Ductile steel manifold
  • Suspension seat
  • Easy cab mounted grab handles
  • Easy service access
  • Master disconnect switch
  • Protected tilt & extend cylinders
  • Boom lift point
  • Steel hydraulic & fuel tanks
  • Manual lowering valve (cylinders)
  • Long life Lexan labels
  • Large cross section boom
  • Suspended pedals
  • Easy tie downs
  • Large capacity fuel tank
  • ̋Y ̋ frame handle
  • Trunnion mounted sway cylinders
  • Heavy duty pre-cleaner
  • Melonite pins
  • Additional high pressure hydraulic filter
  • Standard auxiliary hydraulics
  • Steel hood
  • Steel dash
  • Solid steel plate chassis
  • Center mounted powertrain
  • Rear axle stabilization (RAS)
  • Long life boom rollers
  • Back up alarm with light
  • Dual batteries
  • Cab step

Additional information

Class Carriage

E

Capacity Weight

40,000 lbs

Lift Height

30 ft

Forward Reach

16 ft 4 in

Frame Leveling L/R

8 degrees

Machine Weight

63,000 lbs

Engine

Cummins 4.5L 173 hp (Tier 4F)

Axles

Kessler 91.8938.3

Transmission

Dana T32000

Fuel Capacity

72 gal

Tires

23.5 R25

Hydraulic Flow (per min)

49 gal

Hydraulic Pressure

4,000 psi

Hydraulic Oil Capacity

58 gal

Length to fork face

22’ 3”

Width

118 in

Height

9 ft 10 in

Wheel Base

148 in

Ground Clearance

18 in

Turning Radius

21 ft 11 in

Options

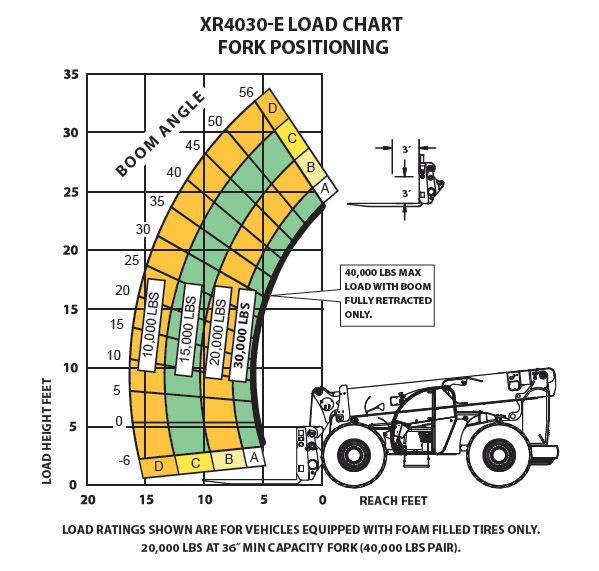

Load Chart

Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to the appropriate Xtreme Manufacturing operation manual for detailed instructions on proper use, specifications and maintenance of equipment.
