XR619
Share this:
Xtreme's industry-leading 10 year – 5 year – 2 year warranty

XR619-A

  • 6,000 lbs Capacity
  • 19 ft Max Lift Height
  • 11 ft Forward Reach
  • 74 hp (Tier 4F) Engine

 Specifications PDF

 Xtreme Multifold Brochure
Add to Quote

Description

  • 360° operator visibility
  • Ductile steel manifold
  • Suspension seat
  • Easy cab mounted grab handles
  • Easy service access
  • Master disconnect switch
  • Protected tilt & extend cylinders
  • Boom lift point
  • Steel hydraulic & fuel tanks
  • Manual lowering valve (cylinders)
  • Long life Lexan labels
  • Large cross section boom
  • Suspended pedals
  • Easy tie downs
  • Large capacity fuel tank
  • Heavy duty pre-cleaner
  • Melonite pins
  • Additional high pressure hydraulic filter
  • Standard auxiliary hydraulics Individual gauges/switches
  • Steel dash Solid steel plate chassis
  • Long life boom rollers
  • Back up alarm
  • Electrical aux hydraulic control
  • Battery
  • Side mount engine
  • Limited slip front axle
  • Hydrostatic rivets
  • Fiberglass engine hood

Additional information

Class Carriage

A
Capacity Weight

6,000 lbs
Lift Height

19 ft
Forward Reach

11 ft
Frame Leveling L/R

N/A
Machine Weight

10,300 lbs
Engine

Deutz 2.9L 74 hp (Tier 4F)
Axles

Comer 128
Transmission

Linde
Fuel Capacity

17 gal
Tires

Pneumatic 12.00 x 16.5
Hydraulic Flow (per min)

26 gal
Hydraulic Pressure

3,200 psi
Hydraulic Oil Capacity

24 gal
Length to fork face

12 ft 8 in
Width

71 in
Height

6 ft 5 in
Wheel Base

93 in
Ground Clearance

10.8 in
Turning Radius

11 ft
Outriggers

No

Options

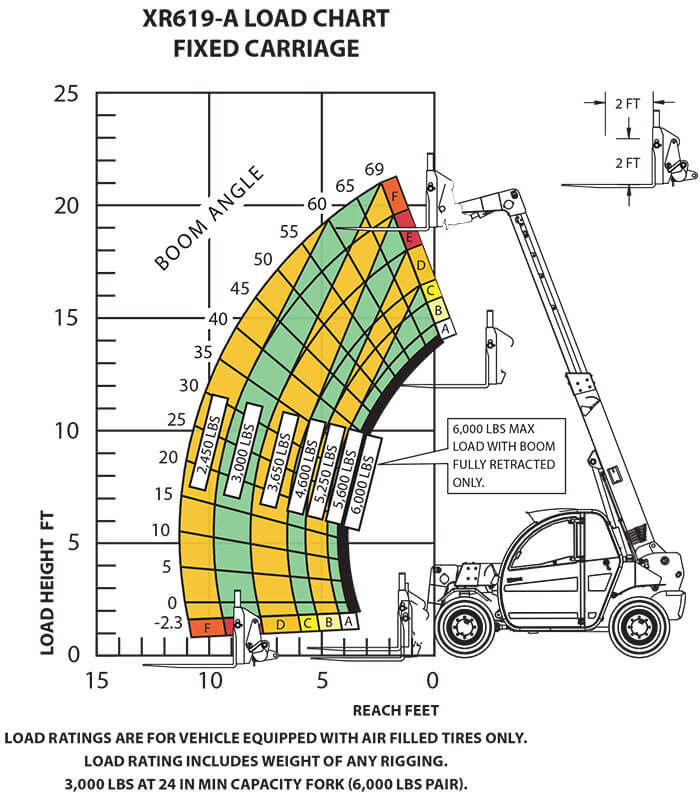

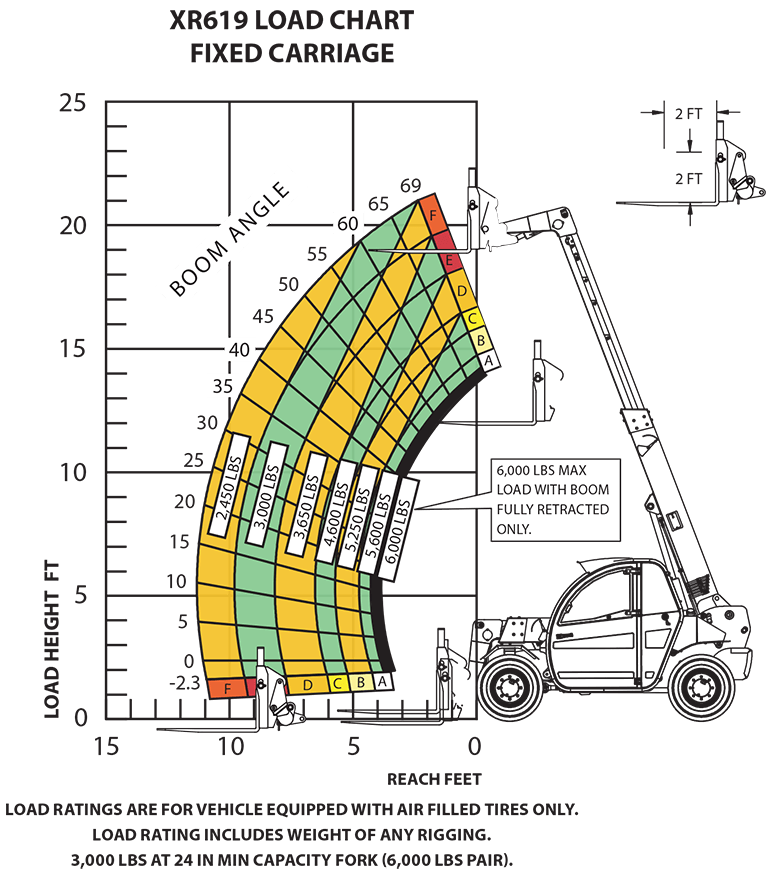

Load Chart

Load Chart XR619-A

Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to the appropriate Xtreme Manufacturing operation manual for detailed instructions on proper use, specifications and maintenance of equipment.
