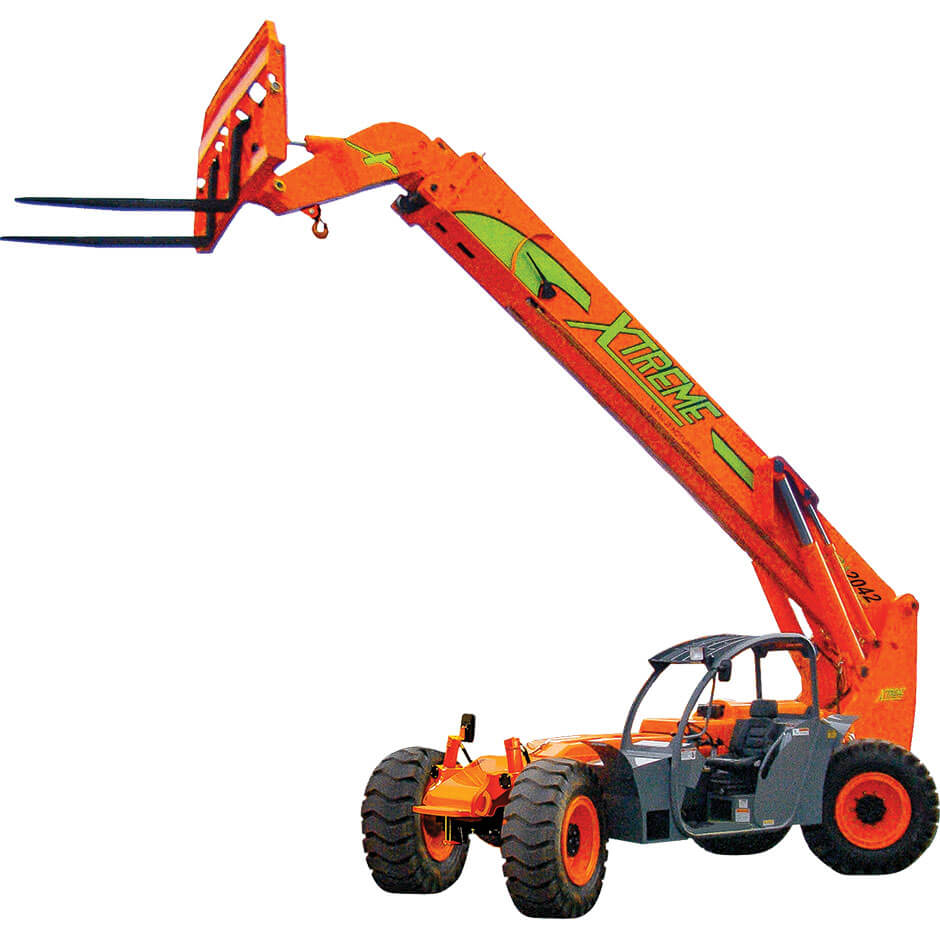

XR2042

  • 20,000 lbs Capacity
  • 42 ft Lift Height
  • 24 ft 10 in Forward Reach
  • 134 hp (Tier 4F) Engine

Description

Increased capacity, while still maintaining excellent jobsite maneuverability.

Designed for maneuvering in tight spaces, parking garages, and/or crowded jobsites. Also useful as a support machine for jobsites with larger forklifts or telehandlers.

  • 360° operator visibility
  • Ductile steel manifold
  • Suspension seat
  • Easy cab mounted grab handles
  • Easy service access
  • Master disconnect switch
  • Protected tilt & extend cylinders
  • Boom lift point
  • Steel hydraulic & fuel tanks
  • Manual lowering valve (cylinders)
  • Long life Lexan labels
  • Large cross section boom
  • Suspended pedals
  • Easy tie downs
  • Large capacity fuel tank
  • ˝Y˝ frame handle
  • Trunnion mounted sway cylinders
  • Heavy duty pre-cleaner
  • Melonite pins
  • Additional high pressure hydraulic filter
  • Standard auxiliary hydraulics
  • Individual gauges/switches
  • Steel dash Steel hood
  • Center mounted powertrain
  • Solid steel plate chassis
  • Long life boom rollers
  • Rear axle stabilization (RAS)
  • Cab step
  • Back up alarm with light
  • Dual batteries

Additional information

Class Carriage

C

Capacity Weight

20,000 lbs

Lift Height

42 ft

Forward Reach

24 ft 10 in

Frame Leveling L/R

8 degrees

Machine Weight

42,820 lbs

Engine

Deutz 3.6L 134 hp (Tier 4F)

Axles

Dana 213

Transmission

Dana T20000

Fuel Capacity

72 gal

Tires

17.5 x 25

Hydraulic Flow (per min)

49 gal

Hydraulic Pressure

4,000 psi

Hydraulic Oil Capacity

58 gal

Length to fork face

26 ft 1 in

Width

102 in

Height

8 ft 11 in

Wheel Base

147 in

Ground Clearance

15 in

Turning Radius

15 ft 10 in

Options

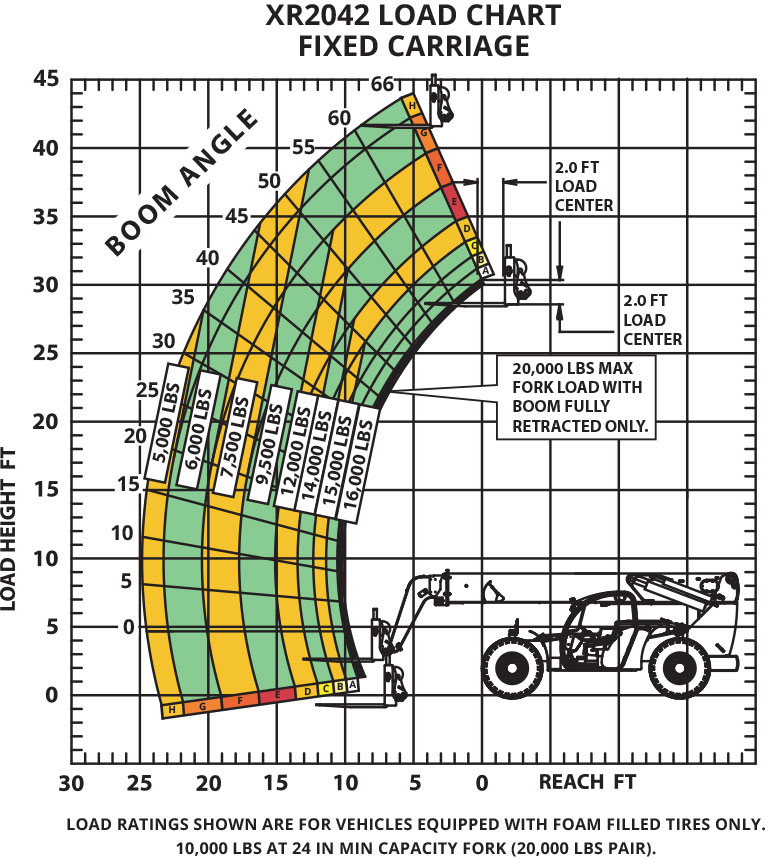

Load Chart

Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to the appropriate Xtreme Manufacturing operation manual for detailed instructions on proper use, specifications and maintenance of equipment.
