Xtreme's industry-leading 10 year – 5 year – 2 year warranty

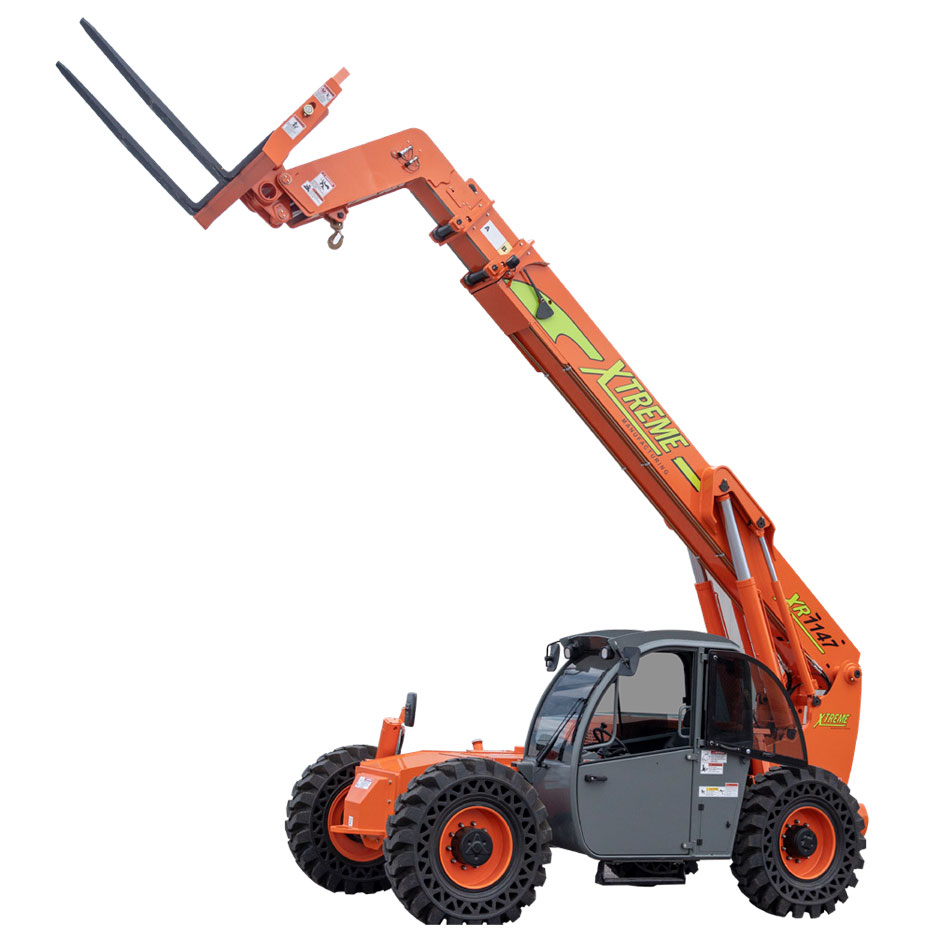

XR1147

  • 11,000 lbs Capacity
  • 47 ft Lift Height
  • 31 ft 6 in Forward Reach
  • 74 hp Tier IV Final Engine HT

Description

The ideal balance of reach, height, capacity, and maneuverability.

  • 360° operator visibility
  • Ductile steel manifold
  • Suspension seat
  • Easy cab mounted grab handles
  • Easy service access
  • Master disconnect switch
  • Protected tilt & extend cylinders
  • Boom lift point
  • Steel hydraulic & fuel tanks
  • Manual lowering valve (cylinders)
  • Long life Lexan labels
  • Large cross section boom
  • Heavy duty boom chains
  • Easy tie downs
  • Suspended pedals
  • Heavy duty pre-cleaner
  • Large capacity fuel tank
  • Additional high pressure hydraulic filter
  • Trunnion mounted sway cylinders
  • Individual gauges/switches
  • Melonite pins
  • Steel hood
  • Standard auxiliary hydraulics
  • Solid steel plate chassis
  • Steel dash
  • Rear axle stabilization (RAS)
  • Center mounted powertrain
  • Back up alarm with light
  • Long life boom rollers
  • Dual batteries
  • Cab step
  • Limited slip front axle

Additional information

Class Carriage

B

Capacity Weight

11,000 lbs

Lift Height

47 ft

Forward Reach

31 ft 6 in

Frame Leveling L/R

11 degrees

Machine Weight

30,610 lbs

Engine

74 hp Tier IV Final

Fuel Capacity

50 gal

Tires

13.00 x 24

Hydraulic Flow (per min)

49 gal

Hydraulic Pressure

3,500 psi

Hydraulic Oil Capacity

62 gal

Length to fork face

21 ft 3 in

Width

101 in

Height

8 ft 1 in

Wheel Base

125 in

Ground Clearance

16.5 in

Turning Radius

12 ft

Options








Load Chart

Xtreme XR1147 Load Chart

Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to the appropriate Xtreme Manufacturing operation manual for detailed instructions on proper use, specifications and maintenance of equipment.
