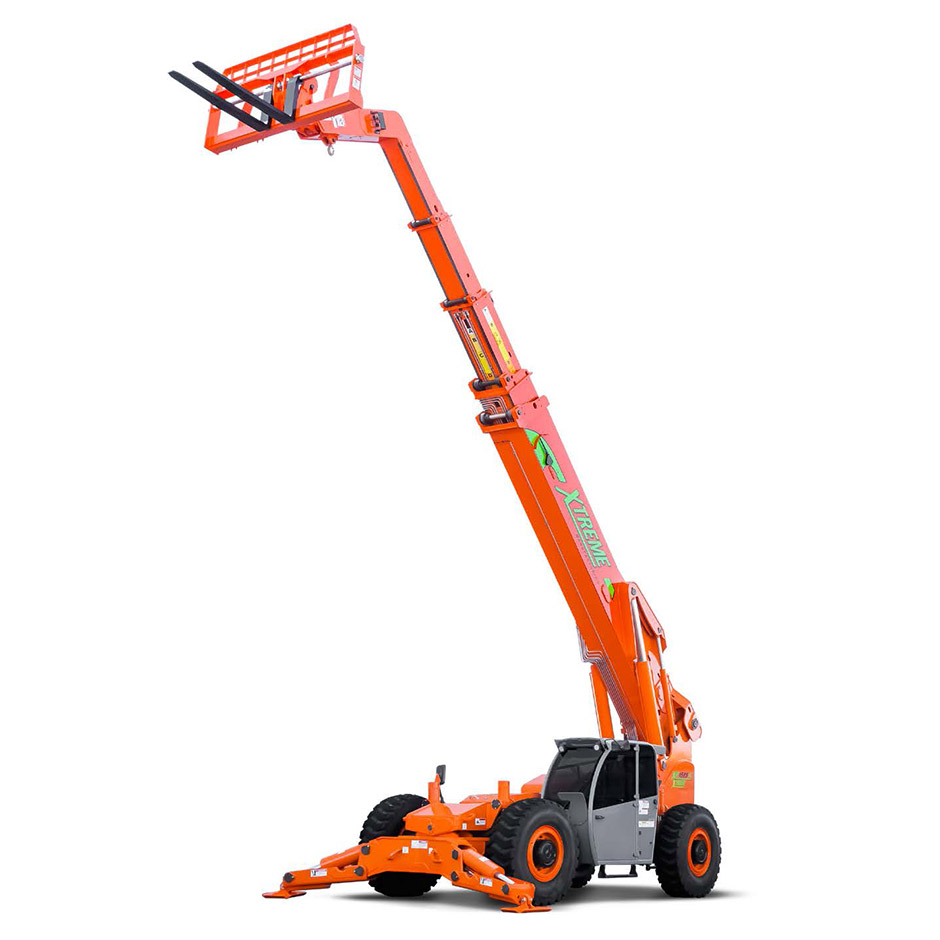

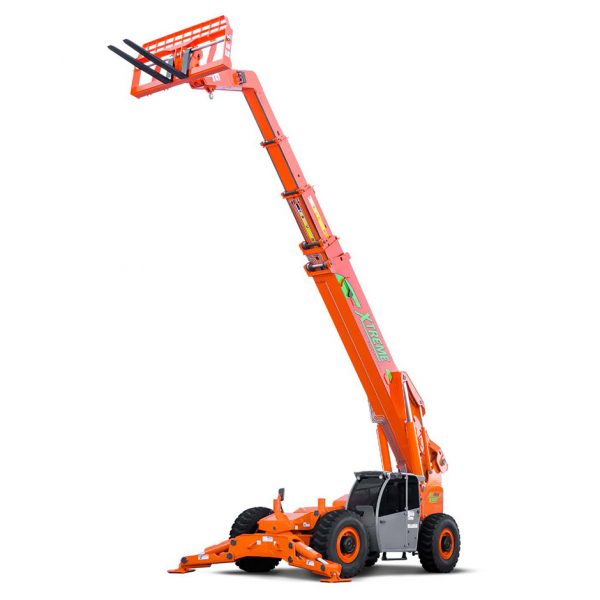

XR1285-B

  • 12,000 lbs Capacity
  • 85 ft Max Lift Height
  • 56 ft Forward Reach
  • 173 hp (Tier 4F)

Description

  • 360° operator visibility
  • Ductile steel manifold
  • Suspension seat
  • Easy cab mounted grab handles
  • Easy service access
  • Master disconnect switch
  • Protected tilt & extend cylinders
  • Boom lift point
  • Steel hydraulic & fuel tanks
  • Manual lowering valve (cylinders)
  • Long life Lexan labels
  • Large cross section boom
  • Heavy duty boom chains
  • Easy tie downs
  • Suspended pedals ˝Y˝ frame handle
  • Large capacity fuel tank
  • Heavy duty pre-cleaner
  • Trunnion mounted sway cylinders
  • Additional high pressure hydraulic filter
  • Melonite pins
  • Steel hood
  • Standard auxiliary hydraulics
  • Solid steel plate chassis
  • Steel dash
  • Rear axle stabilization (RAS)
  • Center mounted powertrain
  • Wider outrigger stance
  • Long life boom rollers
  • Back up alarm with light
  • Dual batteries
  • Cab step
  • Electrical aux hydraulic control

Additional information

Class Carriage

B

Capacity Weight

12,000 lbs

Lift Height

85 ft

Forward Reach

56 ft

Frame Leveling L/R

8 degrees

Machine Weight

63,000 lbs

Engine

Cummins 4.5L 173 hp (Tier 4F)

Axles

Kessler 82.8416.3

Transmission

Dana T14

Fuel Capacity

100 gal

Tires

Foam Filled 16.00 x 25 – 28

Hydraulic Flow (per min)

49 gal

Hydraulic Pressure

4,000 psi

Hydraulic Oil Capacity

70 gal

Length to fork face

28 ft 8 in

Width

102 in

Height

10 ft 1 in

Wheel Base

151 in

Ground Clearance

15 in

Turning Radius

16 ft 8 in

Outriggers

Yes

Options









Load Chart

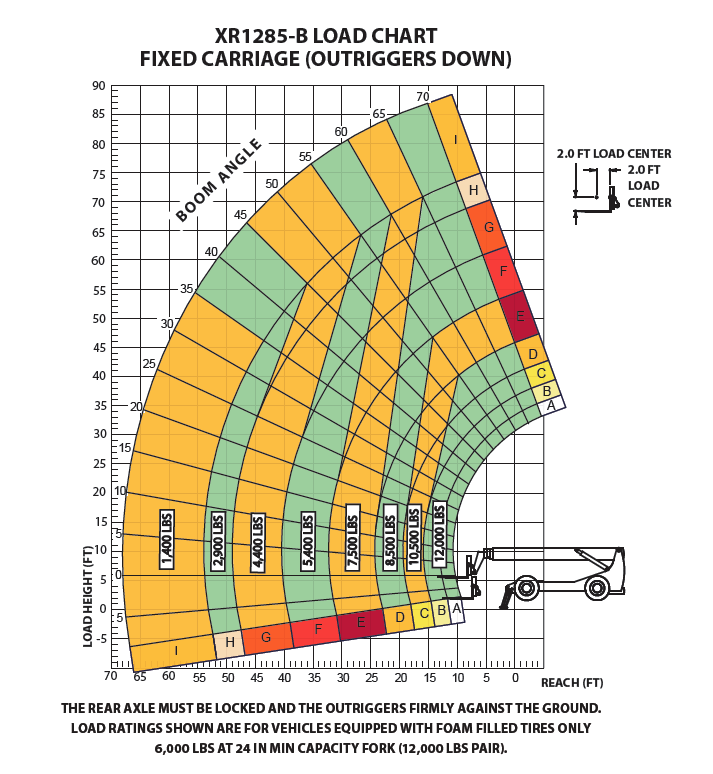

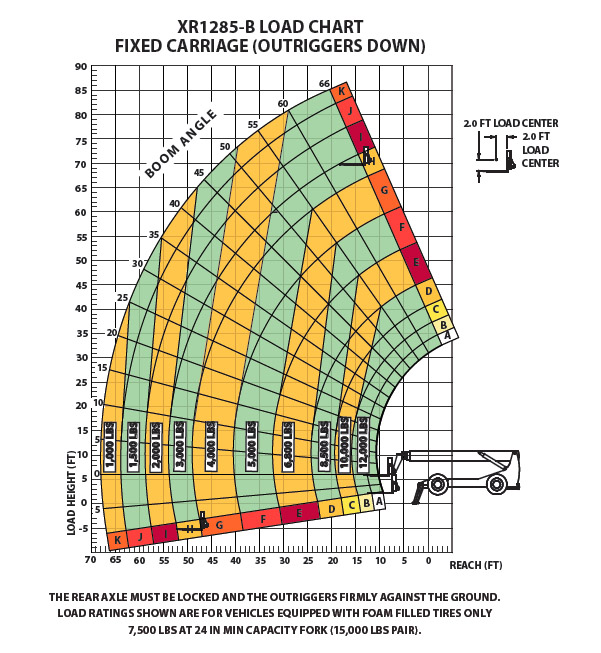

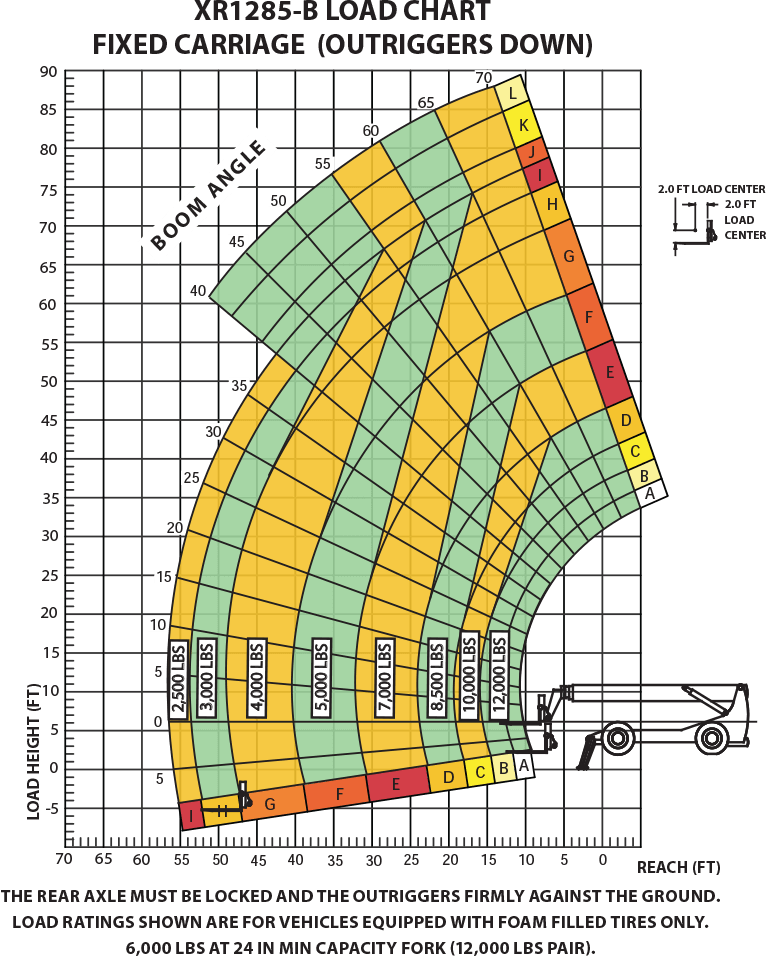

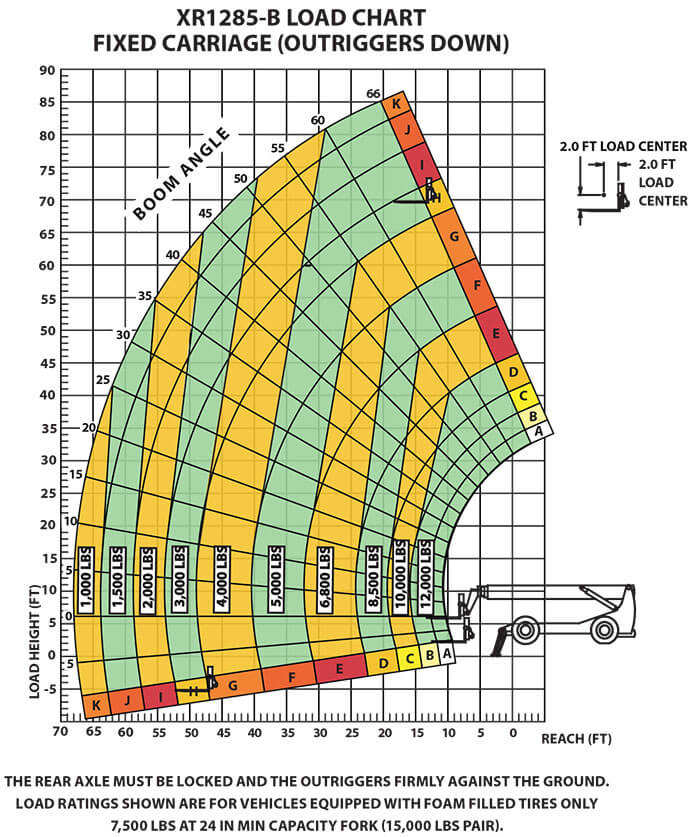

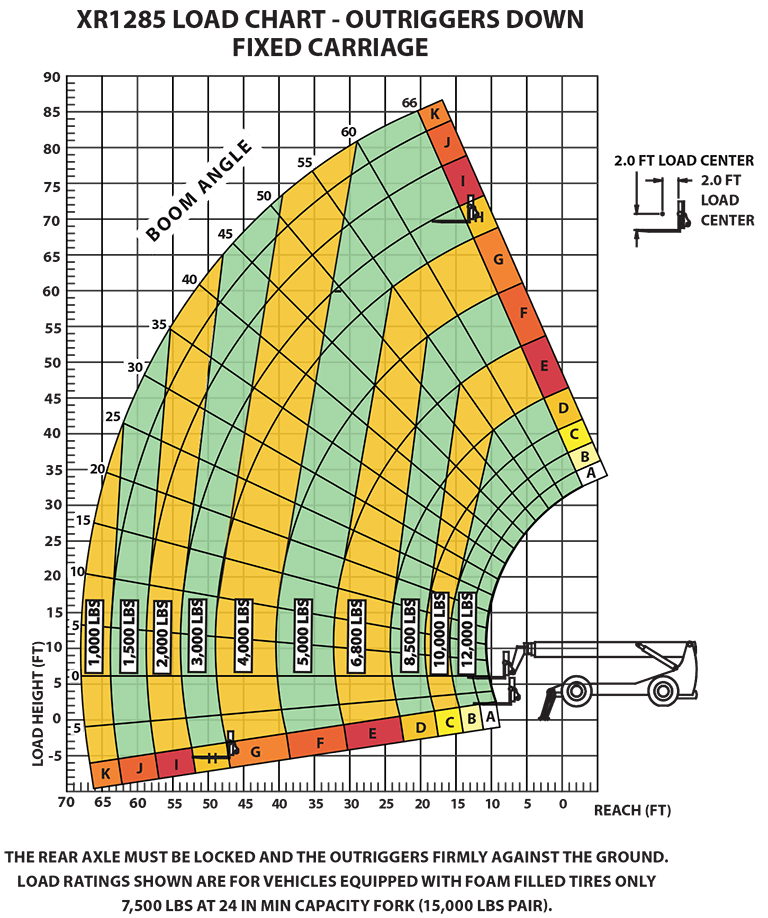

XR1285-B Load Chart - Fixed Carriage (Outriggers Down)

Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to the appropriate Xtreme Manufacturing operation manual for detailed instructions on proper use, specifications and maintenance of equipment.
