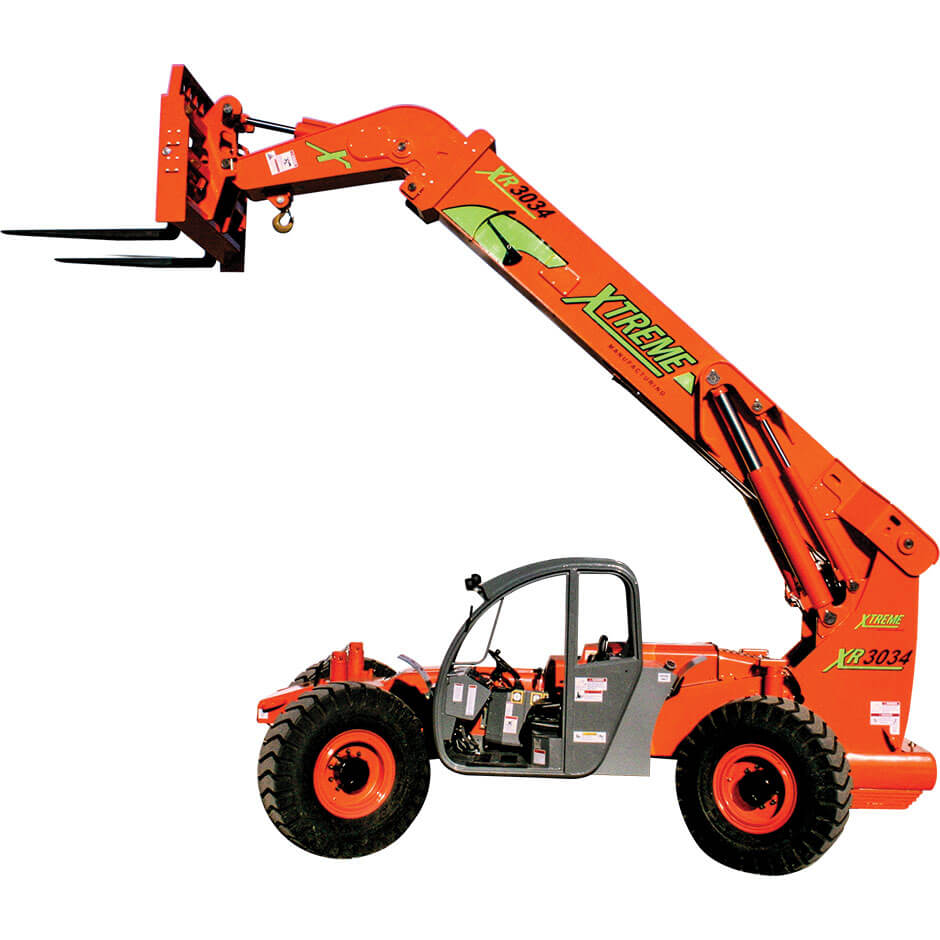

XR3034-D

  • 30,000 lbs Capacity
  • 34 ft Lift Height
  • 17 ft 6 in Forward Reach
  • 173 hp (Tier 4F) Engine

LLEAP AWARDS 2011 - XR2450

Description

The 30,000 lbs capacity XR3034 can handle some of the largest loads on the jobsite.

  • 360° operator visibility
  • Ductile steel manifold
  • Suspension seat
  • Easy cab mounted grab handles
  • Easy service access
  • Master disconnect switch
  • Protected tilt & extend cylinders
  • Boom lift point
  • Steel hydraulic & fuel tanks
  • Manual lowering valve (cylinders)
  • Long life Lexan labels
  • Large cross section boom
  • Suspended pedals
  • Easy tie downs
  • Heavy duty boom chains ˝Y˝ frame handle
  • Large capacity fuel tank Heavy duty pre-cleaner
  • Trunnion mounted sway cylinders
  • Additional high pressure hydraulic filter
  • Melonite pins
  • Steel hood
  • Standard auxiliary hydraulics
  • Solid steel plate chassis
  • Steel dash
  • Rear axle stabilization (RAS)
  • Center mounted powertrain
  • Back up alarm with light
  • Long life boom rollers
  • Cab step
  • Dual batteries

Additional information

Class Carriage

D

Capacity Weight

30,000 lbs

Lift Height

34 ft

Forward Reach

17 ft 6 in

Frame Leveling L/R

8 degrees

Machine Weight

49,100 lbs

Engine

Cummins 4.5L 173 hp (Tier 4F)

Axles

Kessler 82.8416.3

Transmission

Dana T14

Fuel Capacity

72 gal

Tires

Foam Filled 16.00 x 25 – 28

Hydraulic Flow (per min)

49 gal

Hydraulic Pressure

4,500 psi

Hydraulic Oil Capacity

58 gal

Length to fork face

23 ft 11 in

Width

102 in

Height

9 ft 6 in

Wheel Base

148 in

Ground Clearance

15 in

Turning Radius

16 ft 8 in

Outriggers

No

Options







Load Chart

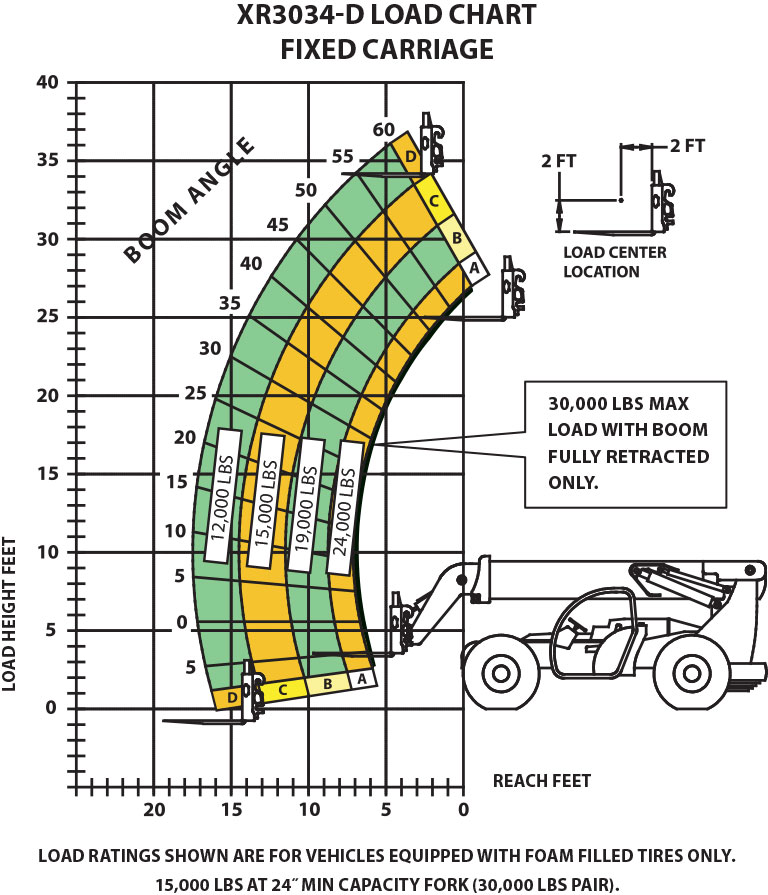

XR3034-D Load Chart

Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to the appropriate Xtreme Manufacturing operation manual for detailed instructions on proper use, specifications and maintenance of equipment.
