Xtreme's industry-leading 10 year – 5 year – 2 year warranty

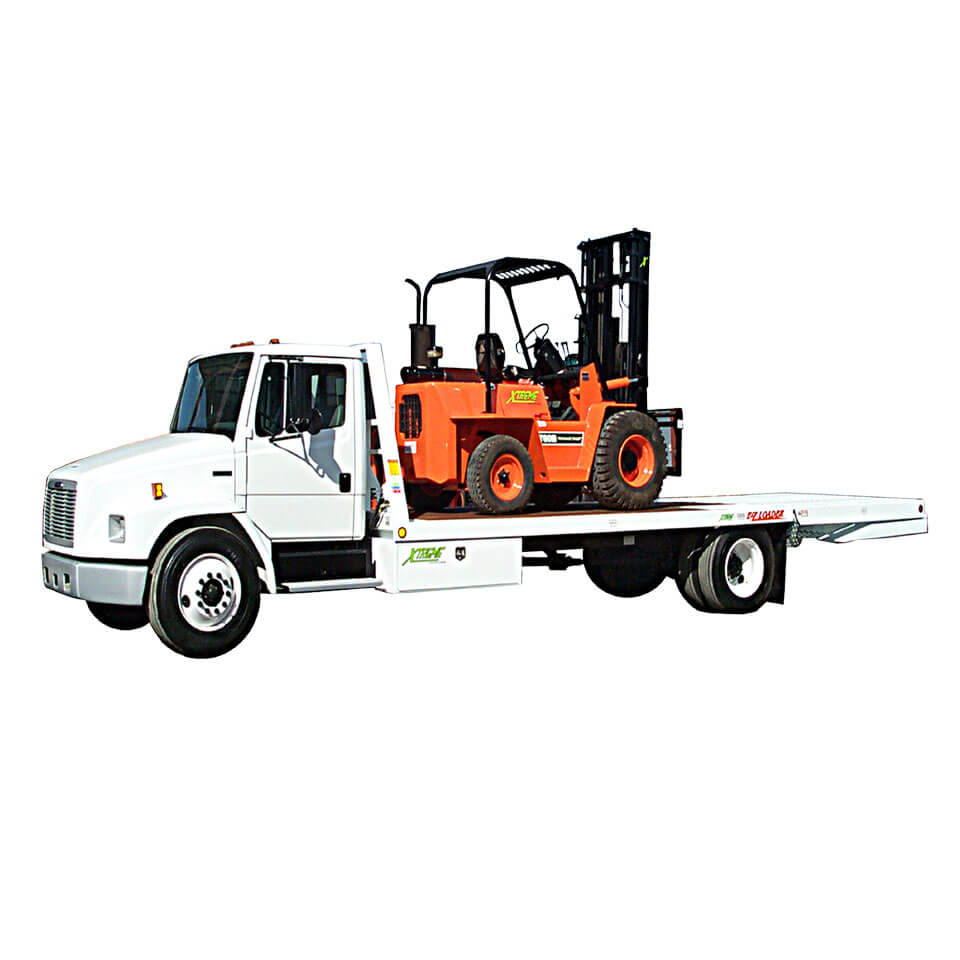

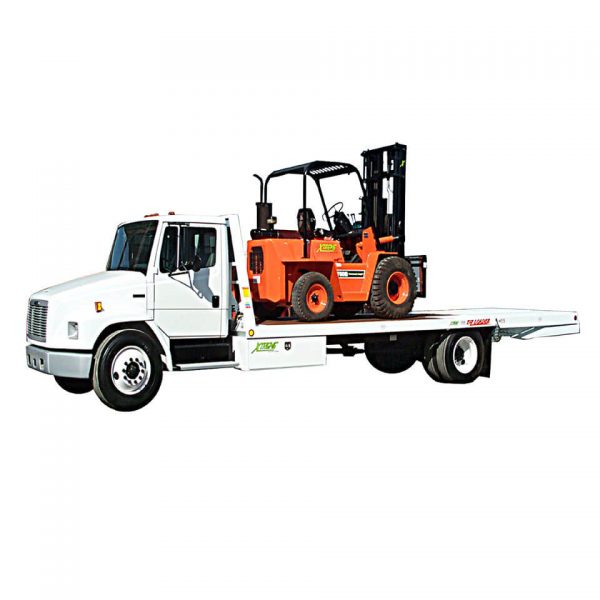

EZ12

  • 12,000 lbs Bed Capacity
  • 8,000 lbs Dove Tail Capacity
  • 5,000 lbs Tow Capacity
  • 21 ft 3 in Bed Length

Description

  • Bulkhead bolted to the frame
  • Traction plate full ramp
  • Knife edge ramp
  • Chain tie-downs (every 1 ft 2 in to 1 ft 10 in)
  • Dock loading ability
  • Nylon strap tie-downs
  • Positive tail lock (non-hydraulic)

* Customer to provide chassis.

Additional information

Dove Tail Lift Capacity

8,000 lbs

Tow Capacity

5,000 lbs

Approximate G.V.W.

26,000 lbs

Bed Capacity

12,000 lbs

Hydraulic Pump P.T.O.

14 gal

Overall Bed Dimensions

8 ft 6 in W x 21 ft 3 in L

Main Bed Dimensions

8 ft 6 in W x 13 ft 5 in L

Dove Tail Dimensions

8 ft 6 in W x 7 ft 5 in L

Flip Tail Dimensions

8 ft 6 in W x 4 ft 7 in L

Bulk Head Height

60 in

Cab to Axle (C.A.)

138 in

Ramp Length

11 ft 11 in

Bed Height (Ground)

41 in

Maximum Dock Height

65 in

Ramp Degree/Percent

18/32%

Hitch Receiver Tube

2 in

Wood Thickness

1 in

Minimum chassis frame rail height

38 in

Options



* Standard bed colors include white/black/gray/XMFG orange.
** 10,000 lb winch option pricing includes tension/level winder & 75′ cable with hook.
*** 15,000 lb winch option pricing includes tension/level winder & 100′ cable with hook.

Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to the appropriate Xtreme Manufacturing operation manual for detailed instructions on proper use, specifications and maintenance of equipment.
