Xtreme's industry-leading 10 year – 5 year – 2 year warranty

EZ18

  • 18,000 lbs Bed Capacity
  • 10,000 lbs Dove Tail Capacity
  • 5,000 lbs Tow Capacity
  • 25 ft 3 in Bed Length

Description

  • Bulkhead bolted to the frame
  • Traction plate full ramp
  • Knife edge ramp

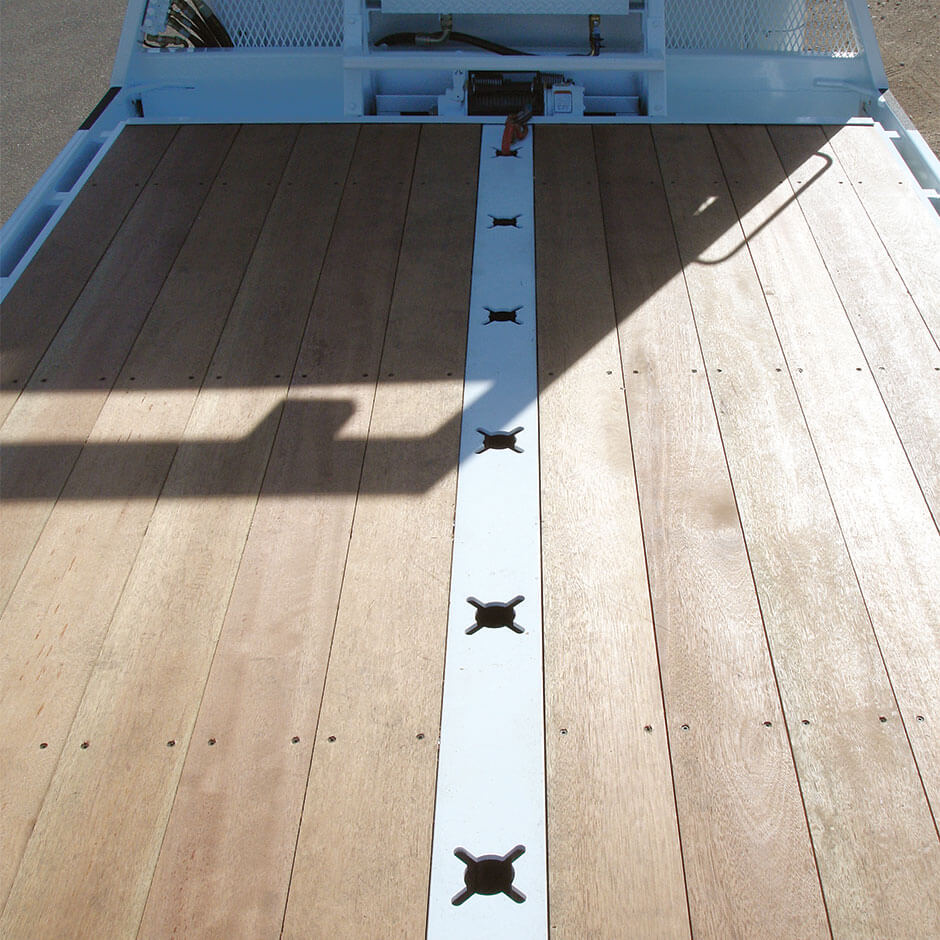

  • Chain tie-downs (every 1 ft 2 in to 1 ft 10 in)
  • Dock loading ability
  • Nylon strap tie-downs
  • Positive tail lock (non-hydraulic)

* Customer to provide chassis.

Additional information

Approximate G.V.W.

33,000 lbs

Bed Capacity

18,000 lbs

Dove Tail Lift Capacity

10,000 lbs

Tow Capacity

5,000 lbs

Hydraulic Pump P.T.O.

14 GPM

Overall Bed Dimensions

8 ft 6 in W x 25 ft 3 in L

Main Bed Dimensions

8 ft 6 in W x 17 ft L

Dove Tail Dimensions

8 ft 6 in W x 8 ft L

Flip Tail Dimensions

8 ft 6 in W x 5 ft 3 in L

Bulk Head Height

60 in

Cab to Axle (C.A.)

185 in

Ramp Length

13 ft 4 in

Bed Height (Ground)

46 in

Maximum Dock Height

66 in

Ramp Degree/Percent

18/32%

Hitch Receiver Tube

2 in

Wood Thickness

1 in

Options



* Standard bed colors include white/black/gray/XMFG orange.

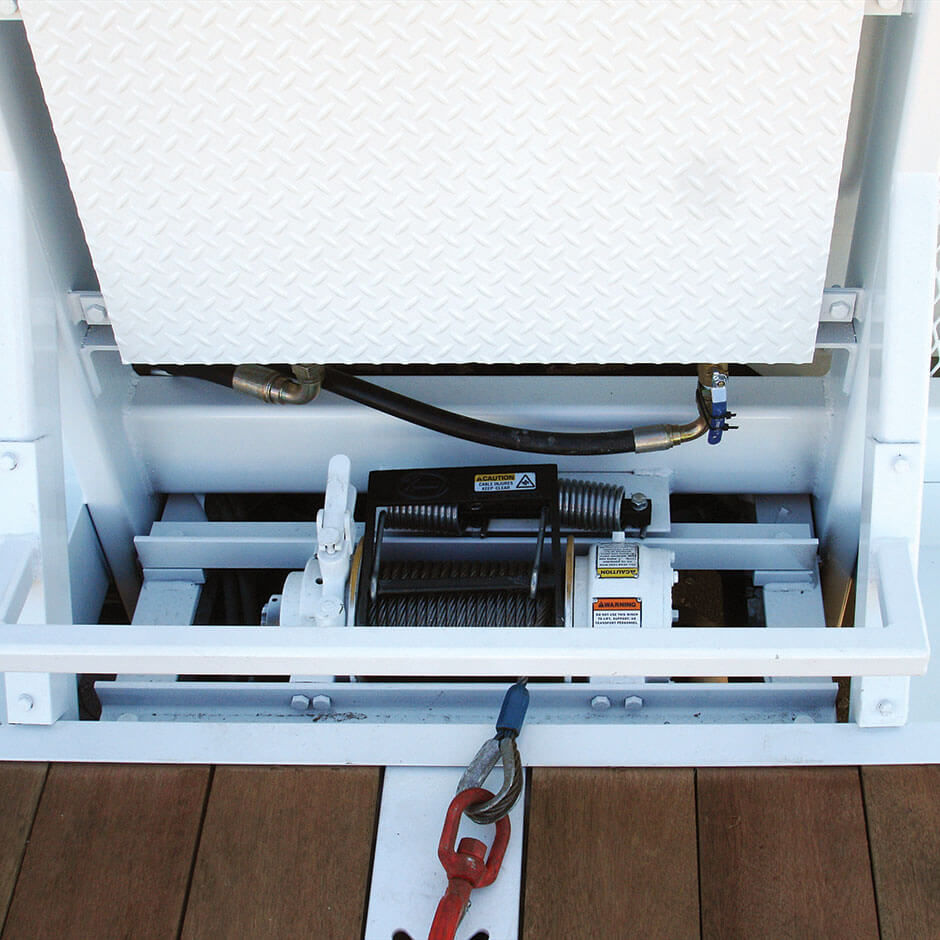

** 10,000 lb winch option pricing includes tension/level winder & 75′ cable with hook.
*** 15,000 lb winch option pricing includes tension/level winder & 100′ cable with hook.

Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to the appropriate Xtreme Manufacturing operation manual for detailed instructions on proper use, specifications and maintenance of equipment.
