Xtreme's industry-leading 10 year – 5 year – 2 year warranty

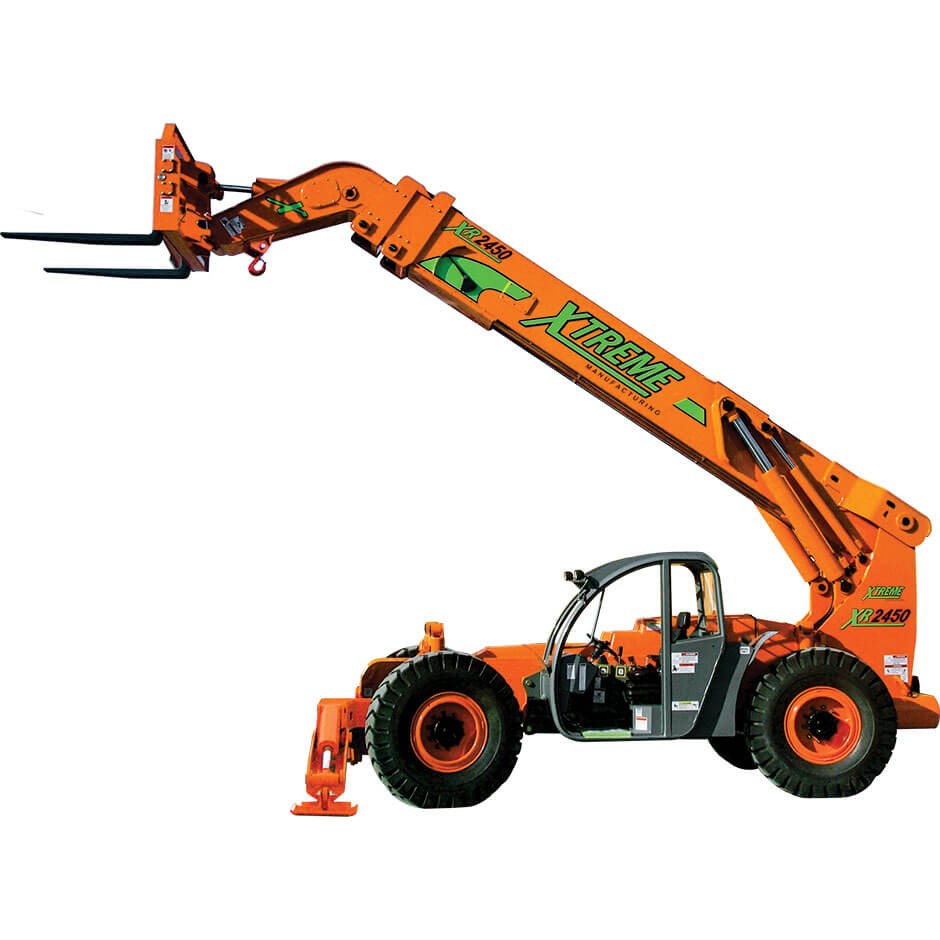

XR2450-D

  • 24,000 lbs Capacity
  • 50 ft Lift Height
  • 36 ft Forward Reach
  • 173 hp (Tier 4F) Engine

LLEAP AWARDS 2011 - XR2450

Description

The XR2450 provides a substantial 24,000 lbs capacity, ideal for large scale infrastructure and construction projects.

  • 360° operator visibility
  • Ductile steel manifold
  • Suspension seat
  • Easy cab mounted grab handles
  • Easy service access
  • Master disconnect switch
  • Protected tilt & extend cylinders
  • Boom lift point
  • Steel hydraulic & fuel tanks
  • Manual lowering valve (cylinders)
  • Long life Lexan labels
  • Large cross section boom
  • Suspended pedals
  • Easy tie downs
  • Heavy duty boom chains ˝Y˝ frame handle
  • Large capacity fuel tank
  • Heavy duty pre-cleaner
  • Trunnion mounted sway cylinders
  • Additional high pressure hydraulic filter
  • Melonite pins
  • Steel hood
  • Standard auxiliary hydraulics
  • Solid steel plate chassis
  • Steel dash
  • Rear axle stabilization (RAS)
  • Center mounted powertrain
  • Wider outrigger stance
  • Long life boom rollers
  • Back up alarm with light
  • Dual batteries
  • Cab step

Additional information

Class Carriage

D

Capacity Weight

24,000 lbs

Lift Height

50 ft

Forward Reach

36 ft

Frame Leveling L/R

8 degrees

Machine Weight

56,560 lbs

Engine

Cummins 4.5L 173 hp (Tier 4F)

Axles

Kessler 82.8416.3

Transmission

Dana T14

Fuel Capacity

72 gal

Tires

Foam Filled 16.00 x 25 – 28

Hydraulic Flow (per min)

49 gal

Hydraulic Pressure

4,300 psi

Hydraulic Oil Capacity

58 gal

Length to fork face

28 ft

Width

102 in

Height

9 ft 6 in

Wheel Base

148 in

Ground Clearance

15 in

Turning Radius

16 ft 8 in

Outriggers

Yes

Options

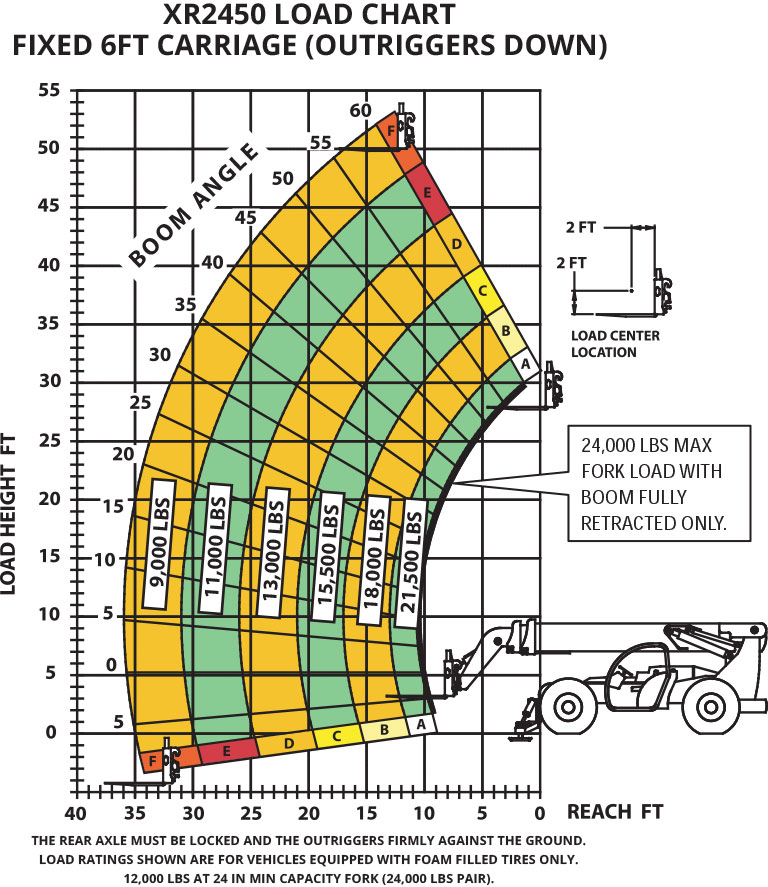

Load Chart

XR2450-D Load Chart

Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to the appropriate Xtreme Manufacturing operation manual for detailed instructions on proper use, specifications and maintenance of equipment.
