Xtreme XR2585-D
Share this:
Xtreme's industry-leading 10 year – 5 year – 2 year warranty

XR2585-D

  • 25,000 lbs Capacity
  • 85 ft Lift Height
  • 55 ft 4 in Forward Reach
  • 250 hp (Tier 4F)

 Specifications PDF

 Xtreme Multifold Brochure
Add to Quote

Description

  • 360° operator visibility
  • Ductile steel manifold
  • Suspension seat
  • Easy cab mounted grab handles
  • Easy service access
  • Master disconnect switch
  • Protected tilt & extend cylinders
  • Boom lift point
  • Steel hydraulic & fuel tanks
  • Manual lowering valve (cylinders)
  • Long life Lexan labels
  • Large cross section boom
  • Suspended pedals
  • Easy tie downs
  • Large capacity fuel tank ˝Y˝ frame handle
  • Trunnion mounted sway cylinders
  • Heavy duty pre-cleaner
  • Melonite pins
  • Additional high pressure hydraulic filter
  • Standard auxiliary hydraulics
  • Steel hood
  • Steel dash
  • Solid steel plate chassis
  • Center mounted powertrain
  • Rear axle stabilization (RAS)
  • Long life boom rollers
  • Back up alarm with light
  • Dual batteries
  • Cab step

Additional information

Class Carriage

D
Capacity Weight

25,000 lbs
Lift Height

85 ft
Forward Reach

55 ft 4 in
Frame Leveling L/R

8 degrees
Machine Weight

82,000 lbs
Engine

Cummins 6.7L 250 hp (Tier 4F)
Axles

Kessler 91.8938.3
Transmission

Dana T32000
Fuel Capacity

100 gal
Tires

Foam Filled 23.5 R25
Hydraulic Flow (per min)

49 gal
Hydraulic Pressure

4,000 psi
Hydraulic Oil Capacity

100 gal
Length to fork face

36 ft 6 in
Width

118 in
Height

9 ft 10 in
Wheel Base

168 in
Ground Clearance

18 in
Turning Radius

23 ft
Outriggers

Yes

Options

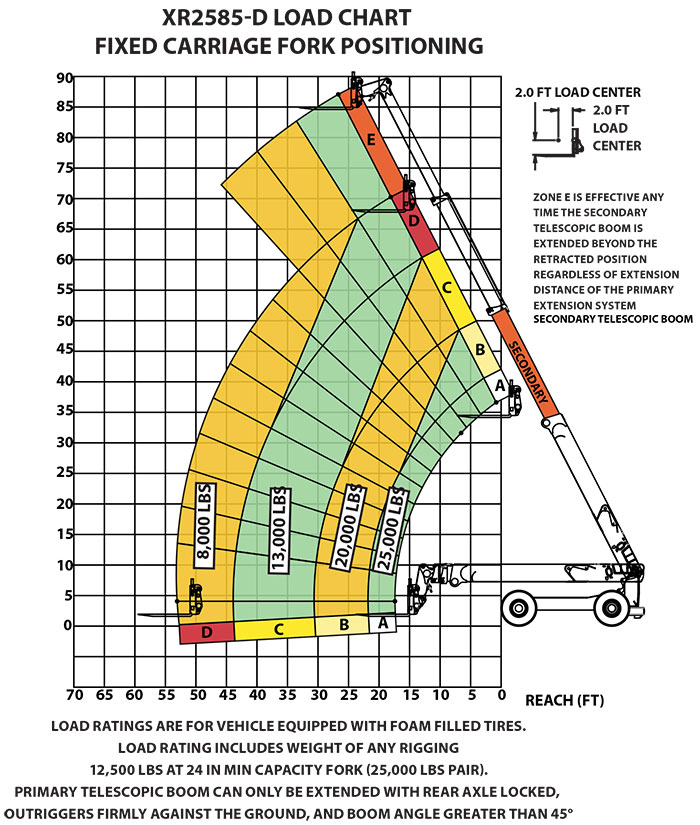

Load Chart

Load Chart XR2585-D Fixed Carriage Fork Positioning

Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to the appropriate Xtreme Manufacturing operation manual for detailed instructions on proper use, specifications and maintenance of equipment.
